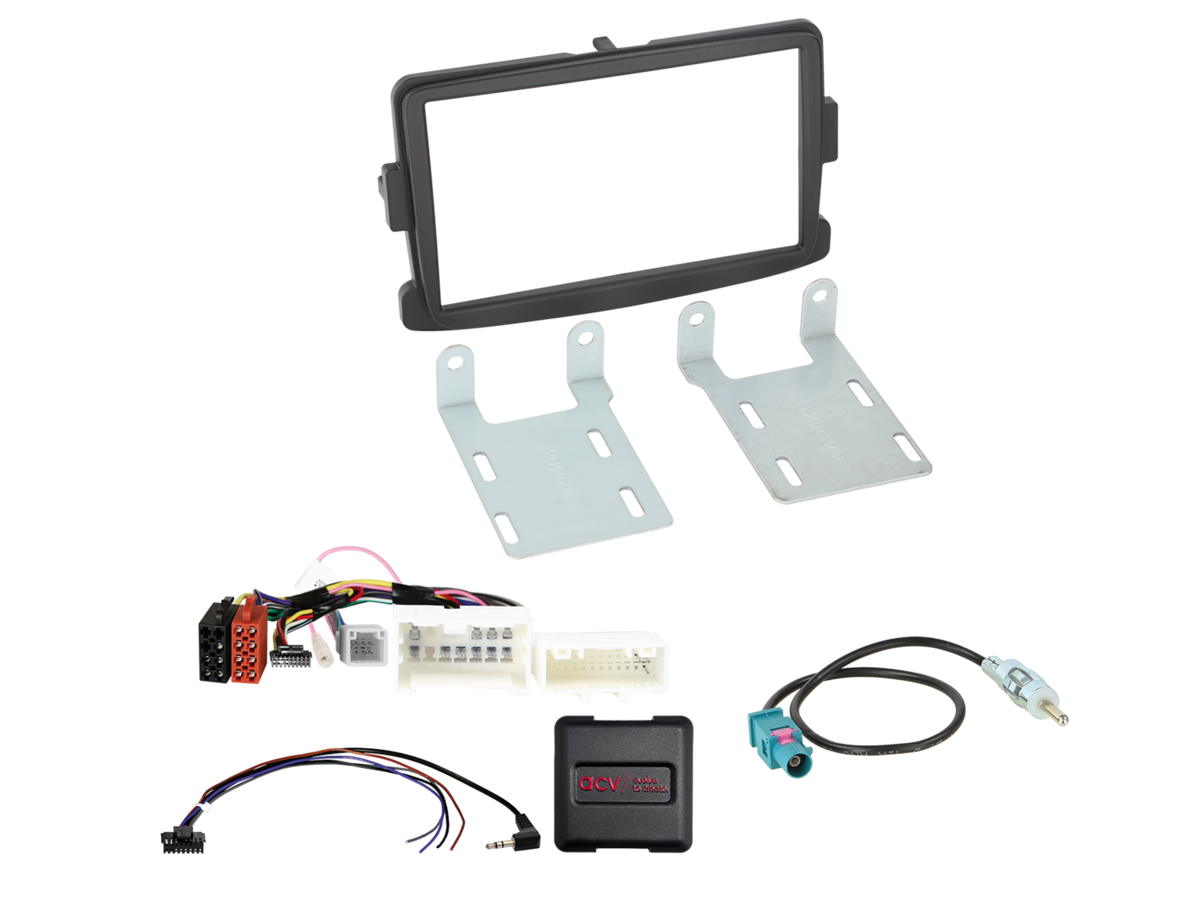

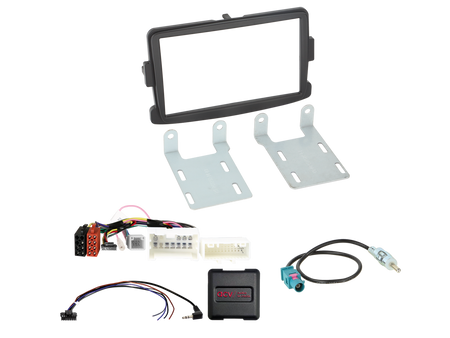

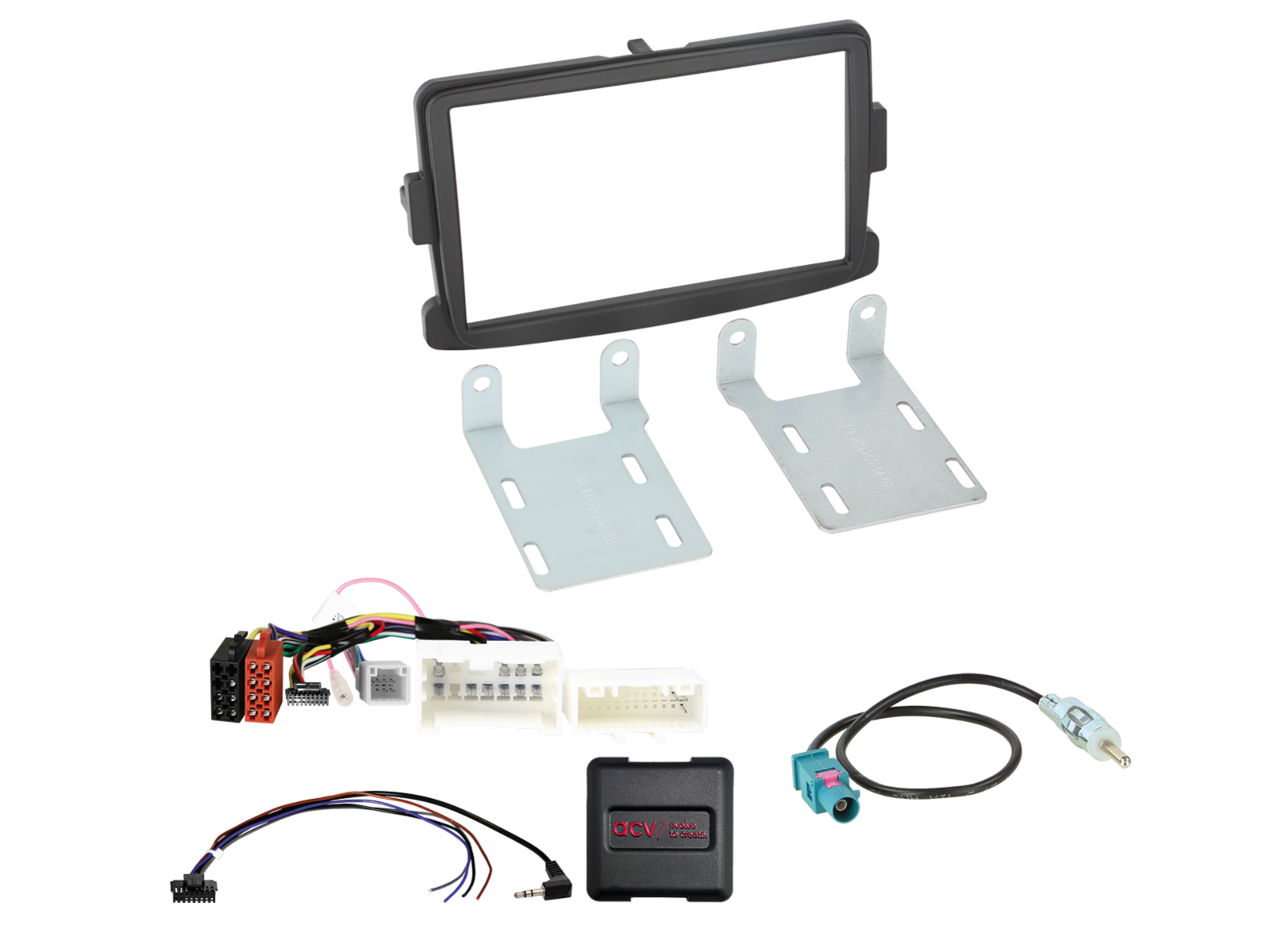

ACV 621250-14-1 Renault Captur 2013> 2017 Black Double DIN Facia Installation Kit

Facia plate 2-DIN and HU connector kit SWC Dacia / Fiat / Nissan / Opel / Renault

Vehicle application:

Dacia
Dacia Dokker (SD) 12/2012 - 11/2020
Dacia Dokker Stepway (SD) 11/2014 - 11/2020
Dacia Duster (SD/SR Facelift) 11/2013 - 07/2021
Dacia Lodgy (SD) 06/2012 - 06/2021
Dacia Lodgy Stepway (SD) 11/2014 - 06/2021
Dacia Logan MCV (SD) 07/2013 - 09/2020
Dacia Sandero (SD) 01/2013 - 09/2020
Dacia Sandero Stepway (SD) 01/2013 - 09/2020

Fiat
Fiat Talento (ZAF 296) 07/2016 - 10/2021*

Nissan
Nissan NV300 (J4) 11/2016 - 05/2021*

Opel
Opel Movano (X62) 06/2013 - 09/2019**
Opel Vivaro B (X82) 06/2014 - 01/2019**

Renault
Renault Capture (R) 06/2013 - 12/2019****
Renault Master (M) 09/2014 - 09/2019***
Renault Master Z.E. (M) 09/2018 - 06/2020***
Renault Trafic III (E82/F82) 09/2014 - 04/2021***

Colour: black

Mounting cutout HU display: 172mm x 98,5mm

Optional:

Pocket for 2-DIN facia plates short version: 271000-10

Following signals are provided:

Reimported vehicles or vehicles with different software may be incompatible in functions.

SWC

*vehicles with OEM Sat Nav
**vehicles with mit CD 18BT OEM HU / NAVI 50 INTELLILINK OEM Sat Nav
***vehicles with Connect R & GO OEM HU / MEDIA-NAV OEM Sat Nav
****OEM HU holder must be modified at the bottom

Note:

analog

connector: 12 Pin / 24 Pin / 6 Pin Dacia
connector: OEM SWC > 3,5mm Jack / loose wire
connector: OEM antenna Fakra(m) > DIN(m)

customize the coding of the grey OEM connector with workshop tools if necessary

vehicles with OEM Sat Nav
vehicles with 2-DIN OEM HU

vehicles with open dash > OEM facia plate vehicles with OEM Sat Nav necessary
vehicles with 1-DIN OEM HU > facia plate vehicles with OEM Sat Nav necessary

vehicles Dacia 2017> with Visteon RO13-X07 OEM HU witout CAN Bus:
SWC Dacia/Fiat/Opel/Nissan/Renault 20Pin/32Pin Nissan > item: 42xvx007

vehicles with Opel Navi 50 Intellilink OEM Sat Nav

vehicles Opel without Navi 80 Intellilink OEM Sat Nav

vehicles Rennault without R-Link OEM Sat Nav silver box

vehicles 2018>:
red +12V ignition supply clamp 15 fusebox fused > if necessary
vehicles 2018>:
interface red +12V ignition supply clamp 15 fusebox fused > if necessary

vehicles with OEM Sat Nav / OEM rear view camera:
24 Pin connector check for correct assignment by measuring with factory HU before installation

Pin 9: +6V power supply OEM camera
Pin 21: GND OEM camera
Pin 10: Video +
Pin 22: Video -

Voltage dropper +6V power supply OEM camera:
Voltage dropper12 Volt > 6 Volt 1.5 A max. > item: 30.3520-04

dip switch settings for the retrofit device manufacturer (look into the manual)
