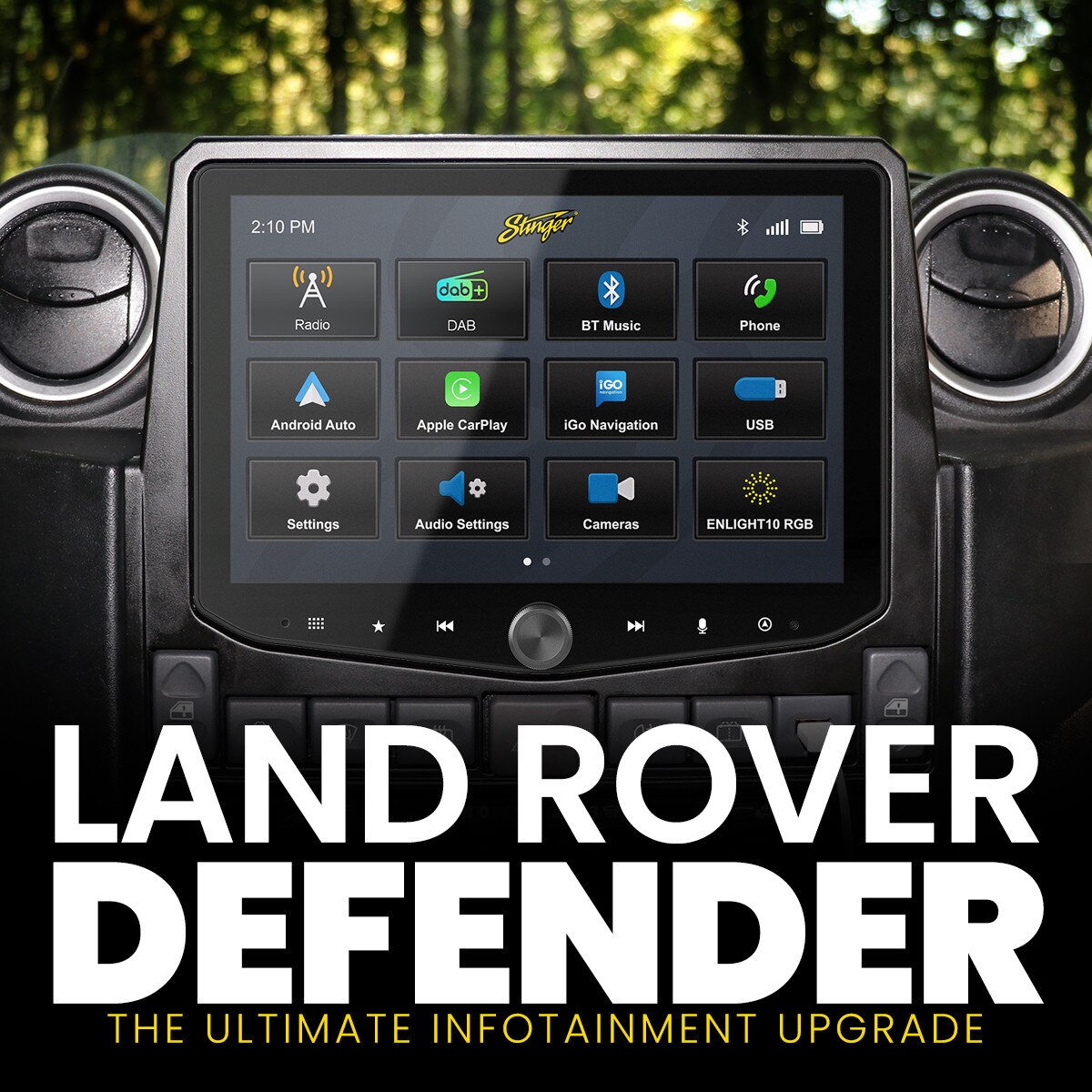

Stinger iX210E-LR1 – Infotainment System for Land Rover Defender (2007–2016)

Upgrade your Land Rover Defender’s stereo with the HORIZON10 10-inch infotainment system. Retain all OEM features, vehicle settings, and more. All in one easy-to-install, plug-and-play package.

Please note: for non-navigation vehicles.

Experience the ultimate upgrade for your Defender with the iX210E-LR1 – a premium 10″ infotainment system explicitly designed for 2007–2016 models. Featuring both wireless and wired Apple CarPlay and Android Auto, this system delivers seamless connectivity, an IP65 weather-resistant display built for rugged conditions, DAB digital radio, and cutting-edge audio enhancements. Fully compatible with AudioControl DSP and ENLIGHT10 lighting integration, the iX210E redefines what in-car entertainment and control should be.

Upgrade your Land Rover Defender Vehicle’s radio with the HORIZON10 iX210E-LR1 10-inch infotainment system and retain all OEM features and vehicle settings. This all-in-one, easy-to-install, plug-and-play package includes everything you need to upgrade your stereo into your vehicle’s dashboard. Please note: This upgrade is for non-navigation Land Rover Defender vehicles only.

KEY FEATURES

HORIZON10 – 10 INCH TOUCHSCREEN
Featuring a high-resolution, 10-inch capacitive touchscreen with 16.7 million colours for a complete visual experience, the HORIZON10® is designed to enhance screen size and infotainment features for drivers. The display and main tuner box offer a modular design, bolstering installation flexibility in space-limited applications and in some cases, even where no installation dash kit is available.

The HORIZON10 features Anti-Glare and Anti-Reflection technology for the best outdoor visibility. Personalise your display with customizable RGB illumination to match factory illumination, or create your own.

INTEGRATION

• The included dash kit and mounting ensure a seamless and factory-like installation, giving your vehicle’s HORIZON10 display a professional and integrated look.

• The vehicle-specific harness establishes a direct and secure connection between your vehicle and the HORIZON10, ensuring compatibility and optimal performance.

• The interface offers enhanced control over your infotainment system, allowing you to manage camera triggers.

2012-2016 models also show advanced vehicle gauges

The HORIZON10 also offers advanced features by displaying vehicle gauges and a dedicated switch screen that allows control over 4 additional accessories that you have added to your vehicle. e.g., Light Bar, Winch, and machinery.

• Eight gauges on the screen

• Save two display presets

• Battery voltage

• Oil temperature

• Fuel level

• Coolant temperature… and many more

• Speed

• RPM

• Current/best 0-60mph time

• Current/best 60-0mph brake distance

• Current/best 1/4-mile time

• Pitch

• Roll

• GPS coordinates

• Compass

• Altitude


RETAINS

• Climate control functionality

• Dashboard button functionality

FEATURES

• Apple CarPlay and Google Android Auto™

• DAB+ Digital Radio tuner

• Access to your smartphone’s music and navigation capabilities

• AM/FM radio with PTY

• Built-in MicroSD card

• 2 USB rear inputs, 1.5-Amp output, HDMI input

• Handsfree Bluetooth 4.2 A2DP with aptX™ for handsfree calling and music streaming


SPECIFICATION

GENERAL

• Recording Resolution: 1024 x 600

• Screen Size: 10 inches

• Manufacturer’s Warranty – Parts: 1 year

• Operating Voltage: 9.0VDC to 18VDC

• Grounding system; Negative Ground

• Max current consumption: 10A fused

H10 DIMENSIONS

• Radio Module: 178 mm x100 mm x 116 mm (W x H x D)

• Display: 247.2 mm x 180.6 mm x 48.5 mm (W x H x D)DISPLAY

• 10-inch Diagonal

• 16:9 aspect ratio

• 1024 x 600

• Pixels: 1,843,200

• Active area 222.72 (W) x 125.28 (H) mm

• Operating Temperature (C) -20° to 70°

AUDIO

• Load impedance: 4Ω nominal / 2Ω allowable

• Continuous power output: 25W x 4ch/4Ω 20Hz to 20KHz, 1%THD at 14.4V

• Audio output level (max): 4.0V preout

• EQ: (15-band) 25Hz/40Hz/63Hz/100Hz/160Hz/250Hz/400Hz/630Hz/1KHz/1.6KHz/2.5KHz/4KHz/6.3KHz/ 10KHz/16KHz

• Gain: ±12dB (2dB/step)

• HPF: 25Hz/40Hz/63Hz/80Hz/100Hz/160Hz/250Hz

• Slope: 6dB, 12dB, 18dB

• Subwoofer Preout LPF: 25Hz/40Hz/63Hz/80Hz/100Hz/160Hz/250Hz

• Slope: 6dB, 12dB, 18dB

• Gain: -14dB to 7dB (1dB/step)

• Phase: 0 or 180

• Speaker level: ±9dB (1dB/step)

• Time Alignment: 0 to 133 step (inch/ms)

FM TUNE

• 87.9MHz to 107.9MHz

• Usable sensitive 0dB (mono S/N: 30dB)

• SNR: 65dB

AM TUNER

• 530KHz to 1710KHz

• Usable sensitive 0dB (mono S/N:20dB)

• SNR 58dB

USB

• USB 2.0

• Max current supply 1.5A

• USB Class: MSC (Mass Storage Class), and MTP (Media Transfer Protocol)

• File system: FAT32, NTFS

BLUETOOTH

• V4.2 dual

• 4dBm Class2

• 2.4GHz to 2.48GHz

CAMERA(S) VIDEO INPUTS

• NTSC OR PAL video formats

HDMI INPUT

• Supported HDMI Resolutions: 640*480p, 720*480p, 1280*720p, 1920*1080i, 1920*1080p

TOSLINK (OPTICAL)

• Output: 48khz Variable

BACKGROUND IMAGE (USER)

• File Format: JPG / PNG

• Resolution: 1024 x 600

• File size is not limited

AUDIO/VIDEO FORMATS AUDIO

• MPEG-1 Audio Layer-3 (.mp3)

• FLAC (.flac)

• MPEG-2 Advanced Audio (.aac)

• MPEG-4 Audio (.m4a)

• Windows Audio (.wav)

• OGG Audio (.ogg)

VIDEO

• QuickTime (.mov)

• MPEG-4 Video (.mp4)

• Microsoft AVI (.avi)

• MPG Video (.mpg)

• MPEG Video 1/2 (.mpeg)

• VOB DVD (.vob)

• Flash Video (.flv)


• JPEG (.jpg)

• CompuServe GIF (.gif)

• PNG (.png)

• JPEG (.jpeg)

• Bitmap(.bmp)
