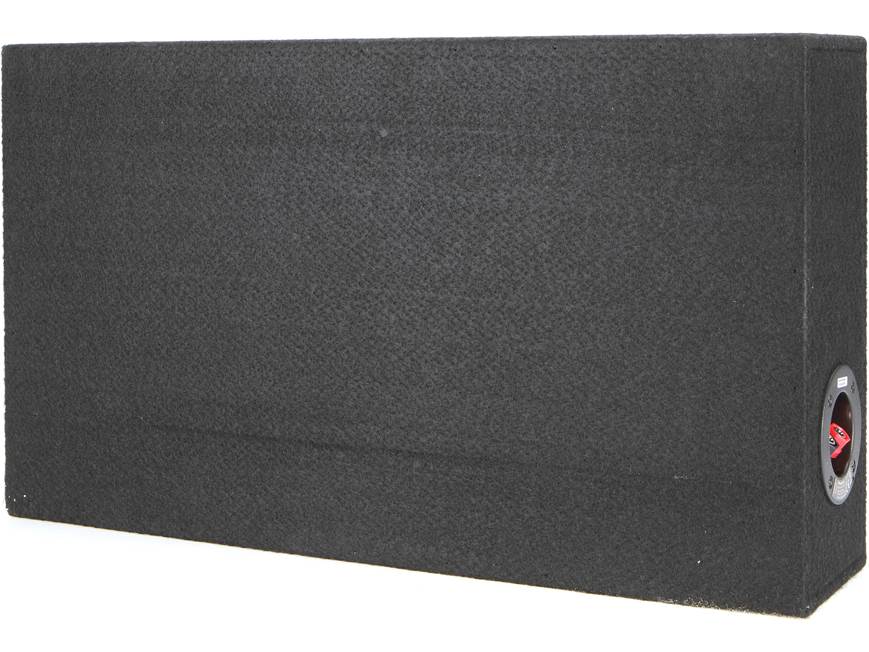

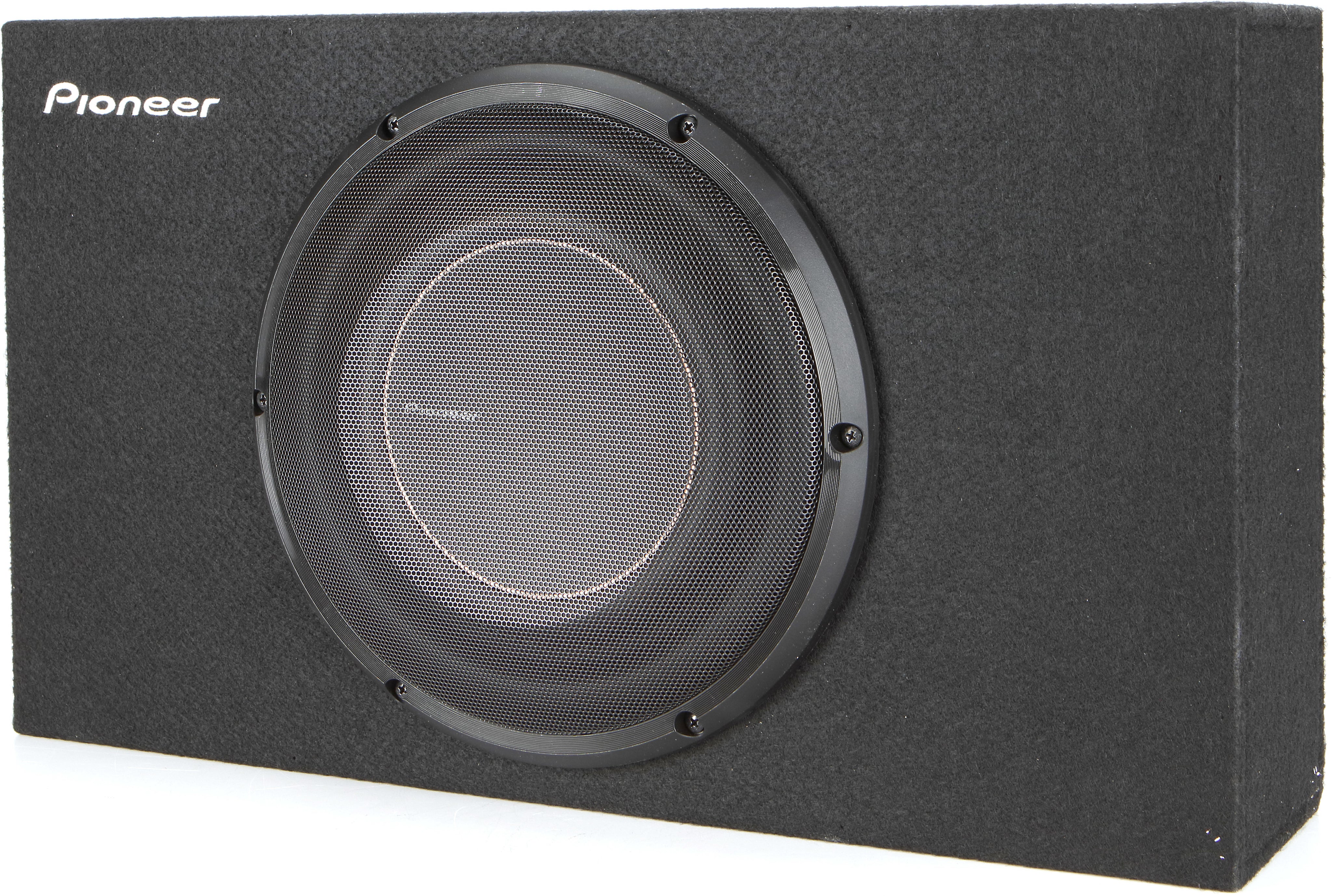

Pioneer TS-D10LB 10" D Series Shallow Mount Pre-Loaded Subwoofer 1300W

The Pioneer TS-D10LB loaded subwoofer is designed to bring serious bass in a shallow, sealed enclosure without compromising on quality. Rated for 350W RMS and 1300W peak, with a 2-ohm single voice coil, it’s built for high-output performance.

The IMPP™ polypropylene cone, interlaced with aramid fibre, provides rigidity and low mass to maintain accurate reproduction, while the butyl rubber surround ensures durability and linear movement even under hard use.

Size-wise, the TS-D10LB is engineered for installation adaptability. With dimensions of approximately 530 mm (W) × 300 mm (H) × 150 mm (D) and a cut-out of 230 mm, it fits into tight spaces—under seats, behind cabins, or mounted in custom boxes.

It also includes a fully carpeted enclosure surface and steel mesh grille for protection and aesthetic finish. The frequency response spans from 20 Hz to 3.4 kHz, with a sensitivity of around 74-76 dB, delivering punchy low end even with moderate power.

Key Product Features

• Frequency response: 20 Hz - 3400 Hz
• Impedance: 2 Ω
• Maximum input power: 1300 W
• Nominal input power: 350 W
• Sensitivity: 74 dB
• Series: D-Series
• Diameter Size: 25 cm
• Dimensions: 530 mm (W) x 300 mm (H) x 150 mm (D)
• IMPP™ Composite Cone
• Magnets: Ferrite
• Woofer material: Aramid Fiber Interlaced Injection Molded PolyPropylene (IMPP™) Cone
• Cut-out Hole: 230 mm
• Mounting Depth: 140 mm
• Weight: 7.49 kg
