Phoenix Gold ZXM500.4 – 1000W 4-Channel Speaker Subwoofer Bridgeable Mini Amplifier
Need Help?
Small In Size Big In Power

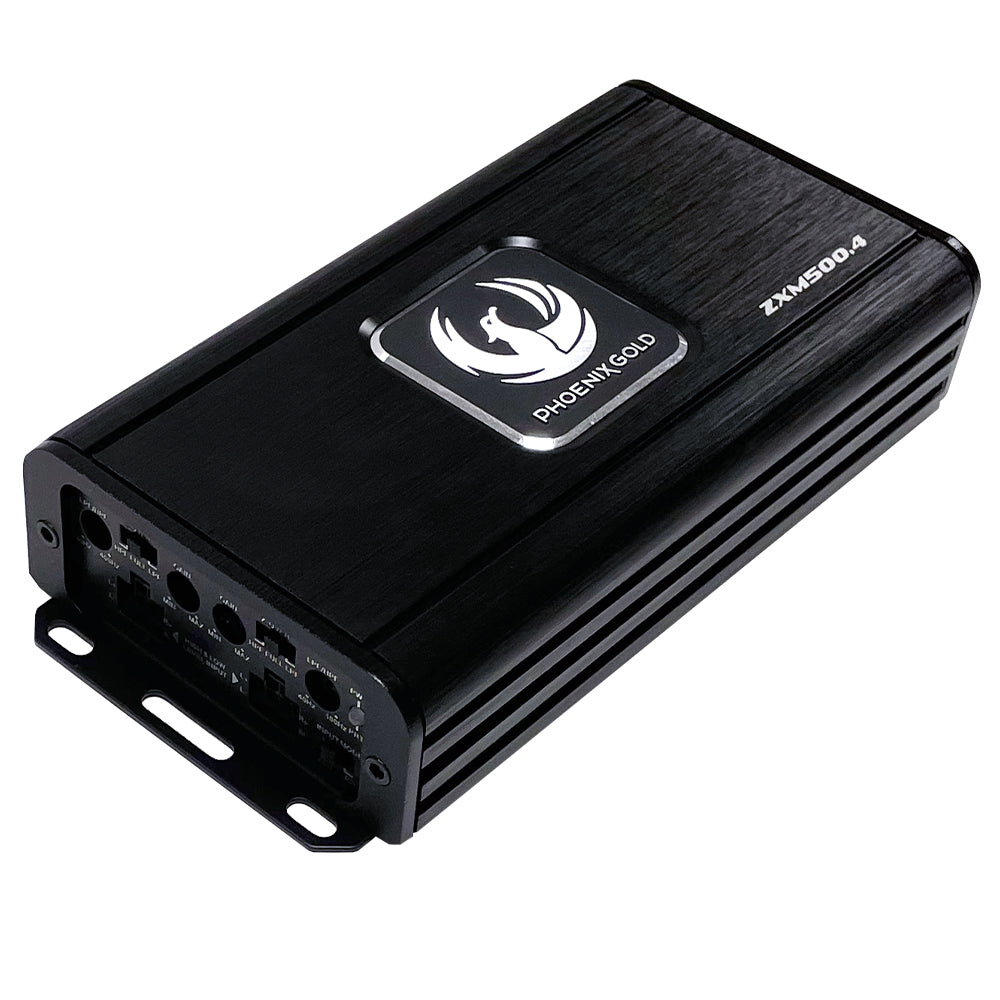

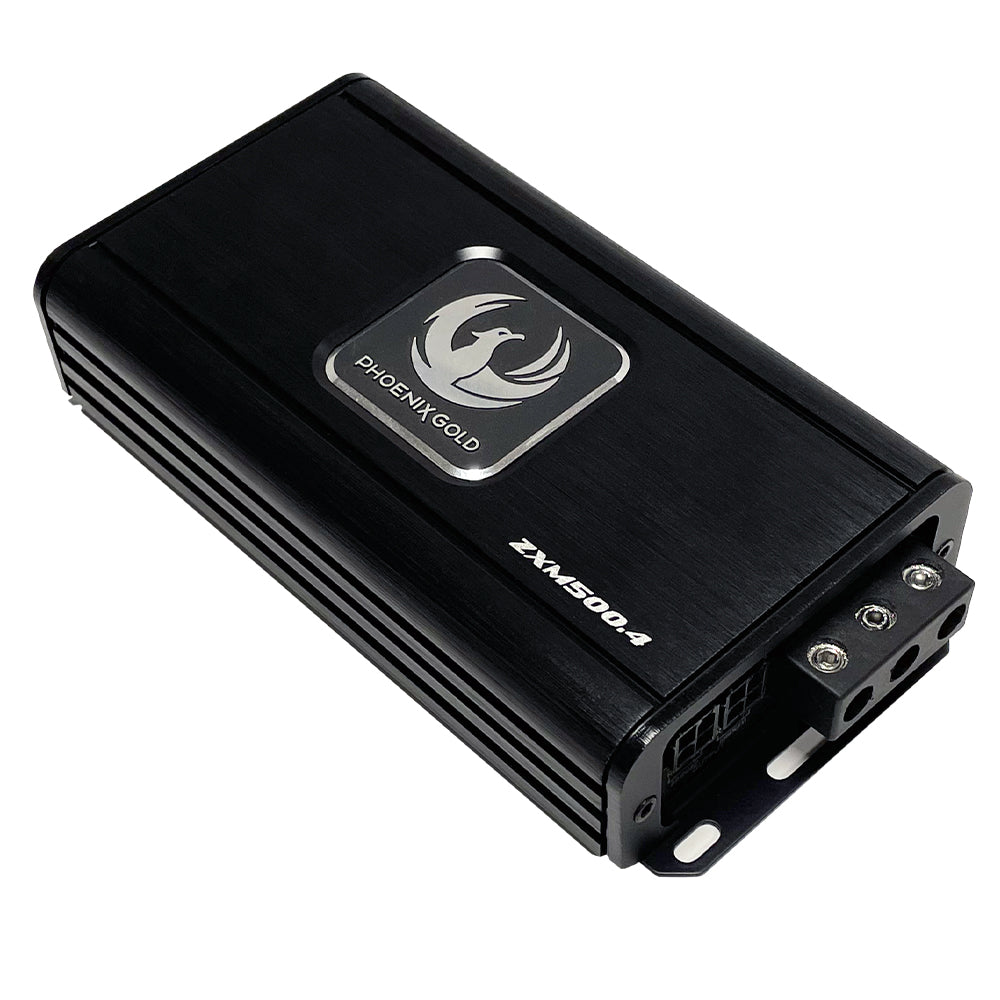

The ZXM500.4 is an impressive Class-D 4-channel Mini Amplifier. The ZXM amplifiers are made to be as small as possible without compromising sound quality, power and functions. The ZXM500.4 is a 4-channel amplifier with a total power of 500W RMS. This equals 4x80W RMS in 4Ohm but the amplifier is stable into 2Ohm and then delivers 4x125W RMS. The 4 channels can also be bridged into 2x250W RMS in 4Ohm. The amplifier comes with adjustable HP/ LP filters and also a switch to use 2ch input or 4ch input low or high level.
A high level of engineering has gone into making these amps with low EMI emissions to not interfere with the advanced electronics or FM signal.
Key Features
Massive Power & Performance
- Full Class-D technology offers efficiency & performance
- Short circuit/thermal and high/low voltage protection
- Excellent signal-to-noise ratio and FM noise rejection
- Built-in protection LED light status indicator
- Surface mount component technology
- Ultra small size for easy installation
- Autostart on high-level input

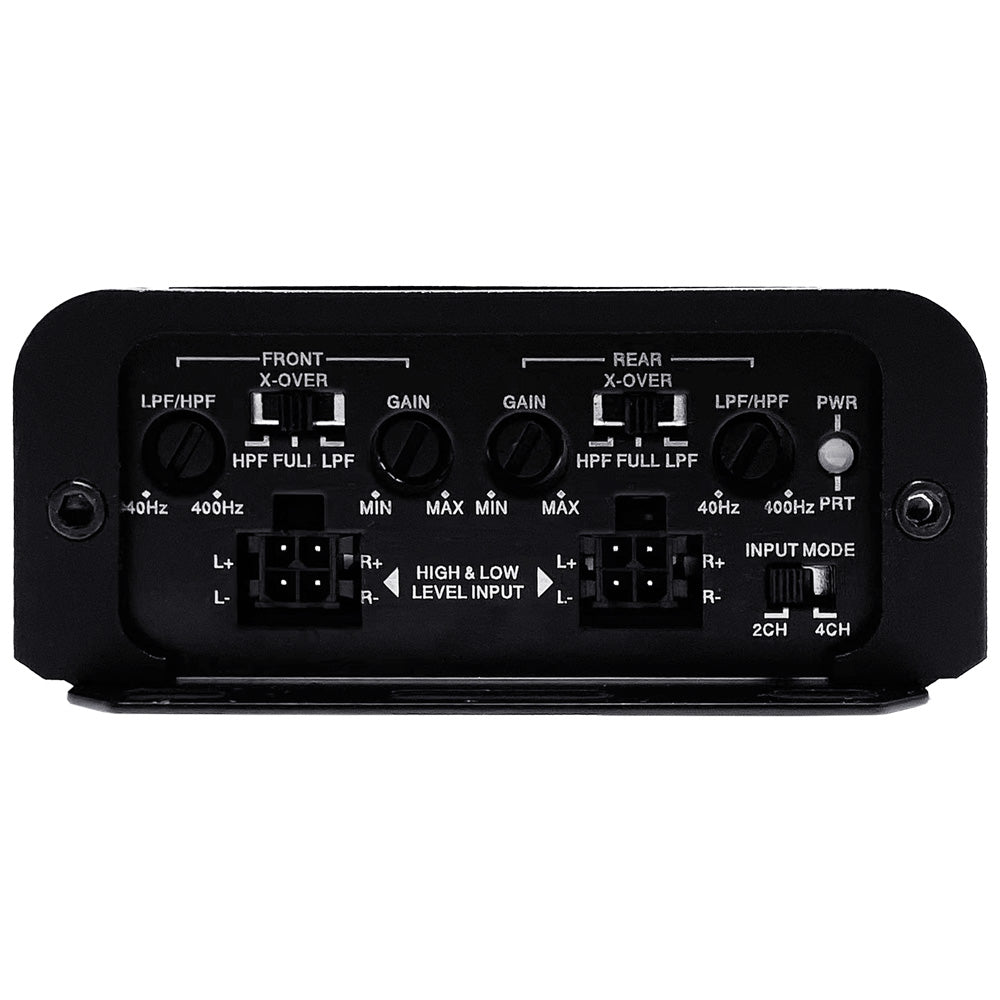

- Full adjustable HP & LP filter
Specifications
- Class-D 4-Channel Mini Amplifier
- Power (MAX) 1000W
- Power Ratings (RMS)
- 125W x 4 @ 2Ohm
- 80W x 4 @ 4Ohm
- 250W x 2 @ 4Ohm bridged
- Frequency Response: 20Hz – 20kHz
- Signal to Noise Ratio: > 90dB
- Total Harmonic Distortion: < 0.3%
- Low Pass Filter: 40Hz – 400Hz (12dB/Oct)
- High Pass Filter: 40Hz – 400Hz (12dB/Oct)
- High-Level Input Auto Turn-On

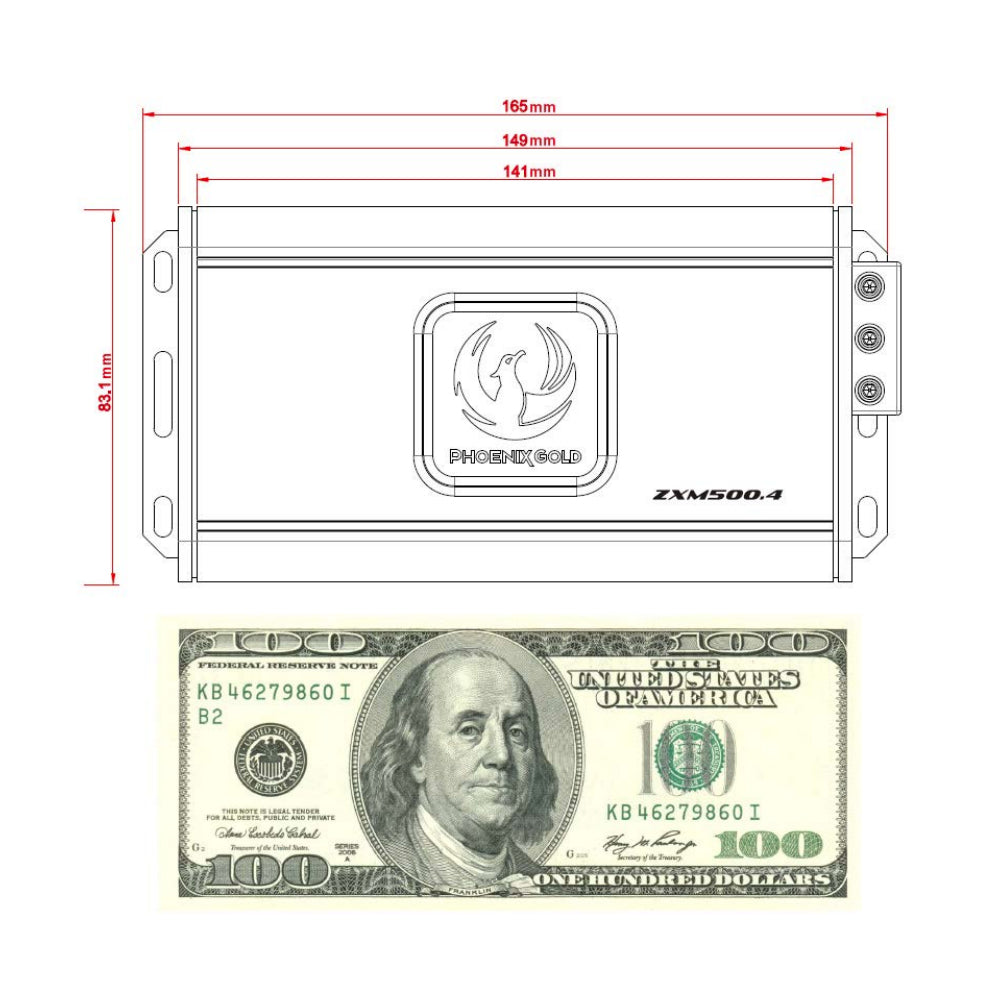

- Dimensions (L x W x H) 165 x 83.1 x 34.8mm
