Kenwood DMX80AXS 9” Car Stereo with Wireless Apple CarPlay & Android Auto, Bluetooth
Need Help?
PLEASE NOTE THIS UNIT REQUIRES A CUSTOM FITTING KIT AND DOES NOT HAVE DAB
Kenwood DMX80AXS 9-inch Smartphone Multimedia Receiver
Bring modern smartphone connectivity to your dashboard with the Kenwood DMX80AXS. Its 9-inch capacitive touchscreen combines wireless and wired Apple CarPlay and Android Auto, Bluetooth calling and music streaming, and wireless smartphone mirroring in a short L-shaped chassis designed for a vehicle-specific installation.
Connect a compatible phone to use supported navigation, communication and entertainment apps on the larger screen. Fine-tune your music with a 13-band equaliser and Digital Time Alignment, or expand your setup using the pre-outs, mono subwoofer output and rear-camera input.

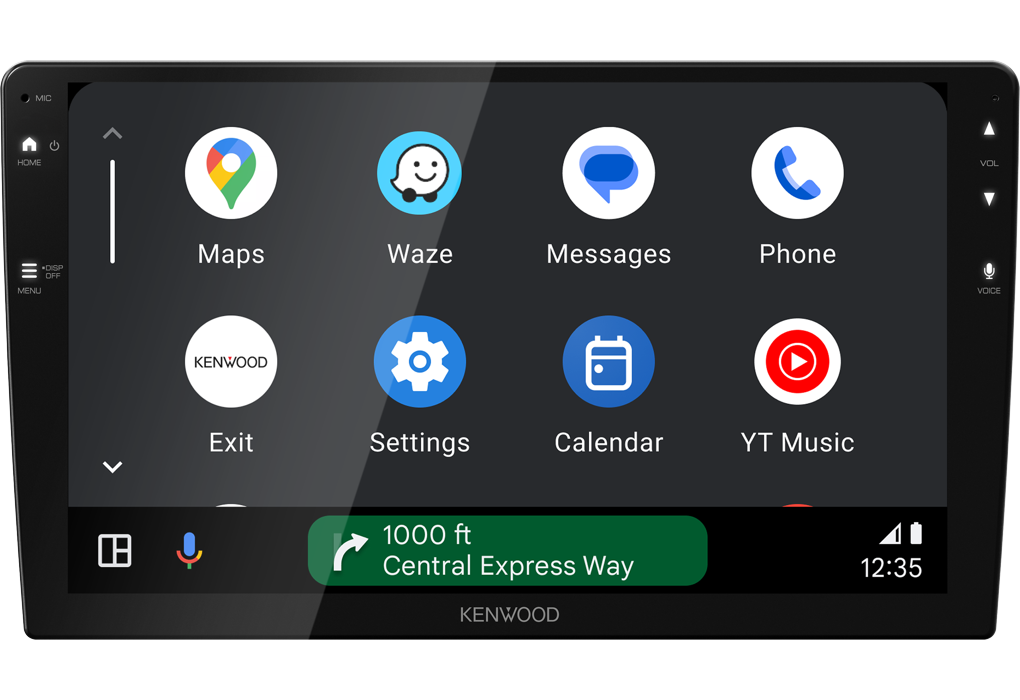

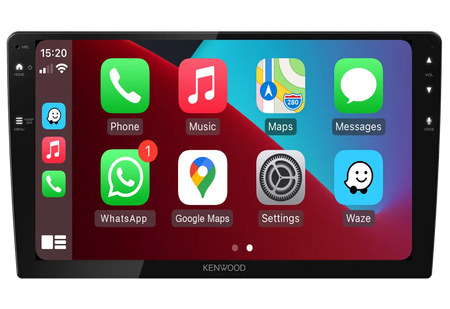

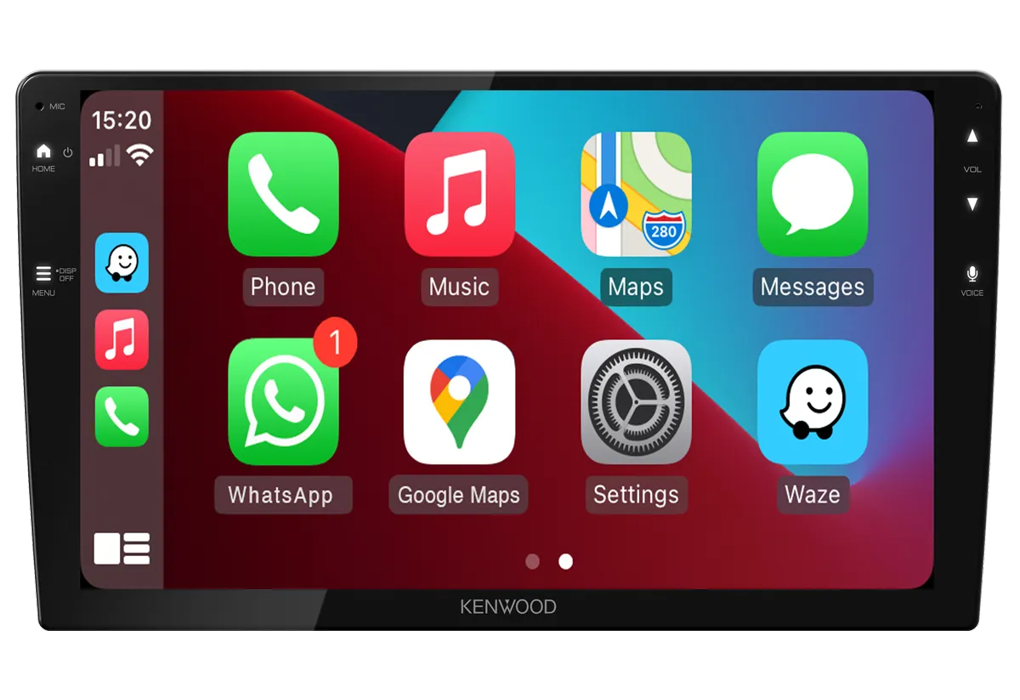

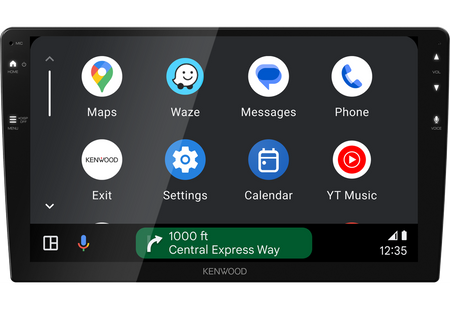

Apple CarPlay, Android Auto and mirroring
- Apple CarPlay wirelessly or via USB with a compatible iPhone.
- Android Auto wirelessly or via USB with a compatible Android phone.
- Built-in 5GHz Wi-Fi.
- Wireless mirroring for compatible iPhone and Android devices using MirrorApp+.
- Two-way touch control for supported smartphone mirroring functions.
- Smartphone features depend on device, application and service compatibility.

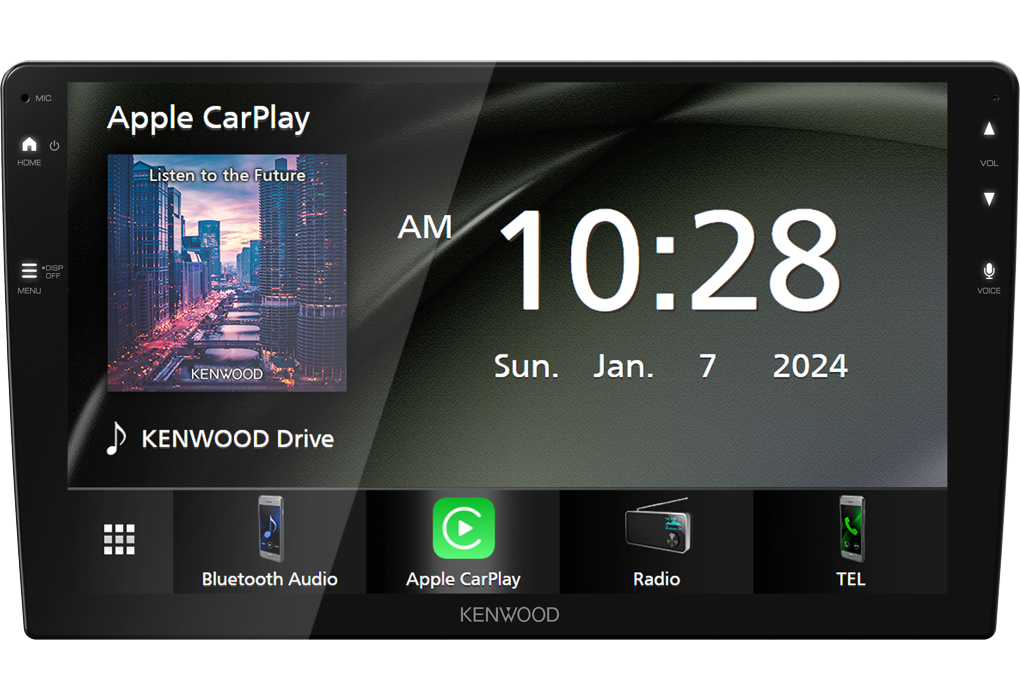

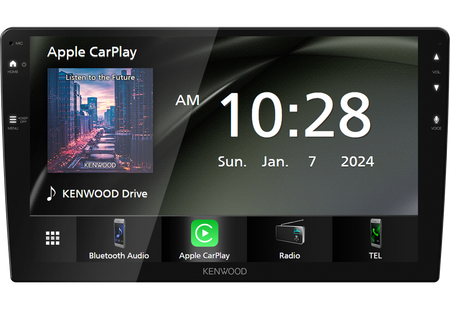

9-inch capacitive touchscreen
- WSVGA display with 1024 x 600 resolution.
- IPS LCD panel with white LED backlighting.
- Capacitive touch panel with anti-fingerprint film.
- Fixed display with a universal-shape front panel.
- Normal, 16:9 and 4:3 display modes.
- Brightness, tint, colour and contrast adjustment.
- Manual or illumination-linked dimming.
- Customisable top menu, six preset wallpapers and two user backgrounds.
- White key illumination.
- UK English menu support.
Bluetooth calling and audio streaming
- Bluetooth 5.0 with SBC and AAC audio codecs.
- Hands-free calling, voice control and wireless audio streaming.
- Registration for up to seven phones.
- Phonebook access with up to 1,000 entries.
- Call history support for up to 20 dialled, received and missed entries.
- Noise cancellation, echo cancellation and private mode.
- Built-in microphone.
- Automatic iPhone and Android pairing via USB.
Radio and USB entertainment
- FM and AM radio reception. No built-in DAB tuner.
- 36 radio presets: 24 FM and 12 AM.
- RDS, Radio Text Plus, traffic information and programme-type search.
- Automatic station memory and local search.
- USB 2.0 High Speed with up to 2.1A supply current.
- FAT16, FAT32, exFAT and NTFS file-system support.
- MP3, WMA, AAC, WAV and FLAC audio playback.
- MPEG1/2/4, WMV, H.264 and MKV video playback.
- Album artwork and tag information display.
- Category search, link search and playback resume.
Power and sound tuning
- Maximum output power: 50W x 4.
- DIN output power: 22W x 4 at 14.4V.
- 2.5V front/rear pre-outs plus mono subwoofer output.
- 13-band graphic equaliser with -9dB to +9dB adjustment.
- Digital Time Alignment from 0–610cm.
- Four listening-position presets.
- Crossover adjustment with high-pass and low-pass filters.
- Speaker-size and channel-level control.
- Loudness, bass boost and tweeter-volume adjustment.
- Source-independent volume offset, balance and fader.
- Built-in amplifier can be switched off.
- Compatible speaker impedance: 4–8 ohms.

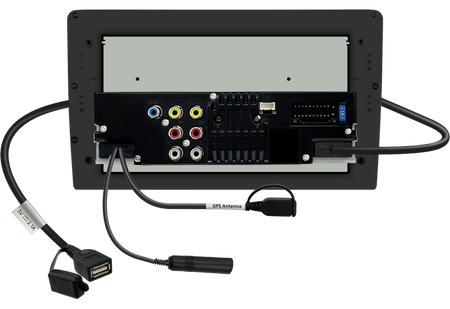

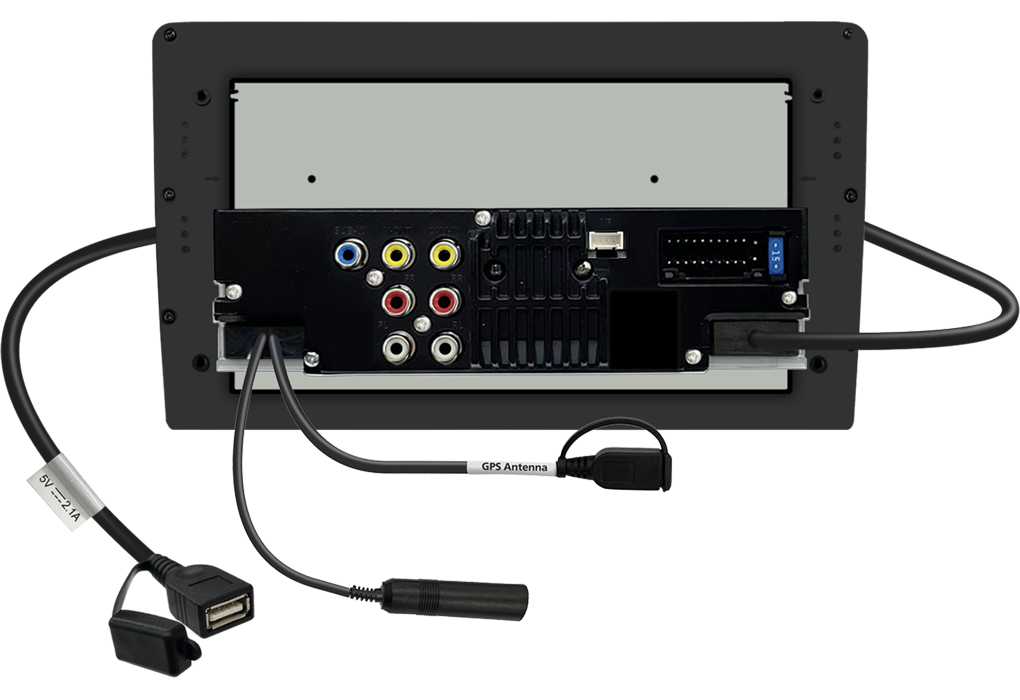

Camera and vehicle integration
- Dedicated rear-camera RCA input.
- Automatic rear-camera interruption and customisable parking guidelines.
- NTSC/PAL external video input compatibility.
- RCA video output for the USB source.
- Steering-wheel control integration requires a suitable optional vehicle interface.
- Learning steering-wheel remote function.
- JASO FM antenna connection and GPS antenna input.
- Optional KNA-RCDV331 infrared remote supported.
- Camera, remote and vehicle-specific integration parts are optional extras.
Installation and dimensions
- Requires a suitable custom vehicle-specific fitting kit.

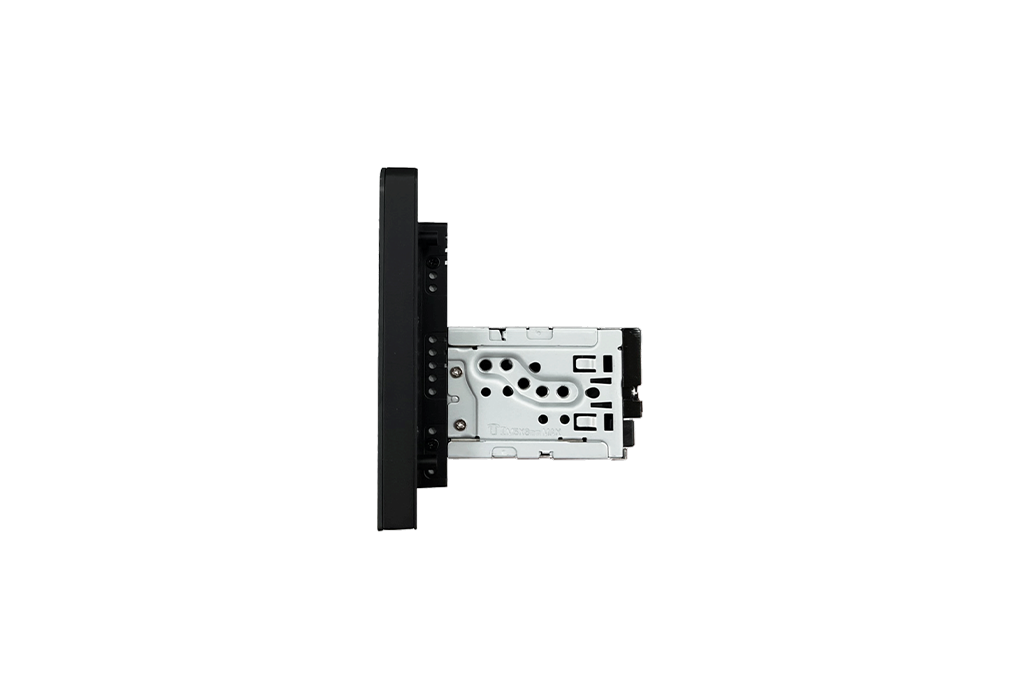

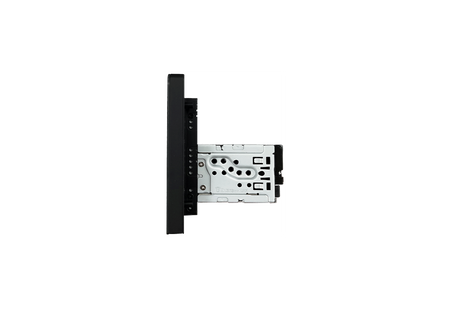

- Short L-shaped chassis for installation flexibility.
- Check vehicle compatibility, dashboard clearance and the required fascia, wiring and control interfaces before purchase.
- Dimensions (W x H x D): 235 x 134 x 85.7mm.
- Weight: 1.33kg.
- Operating voltage: 14.4V, with an allowable range of 10.5–16V.
- Firmware updates supported.
Manufacturer-listed accessories
- Installation sleeve and escutcheon.
- Two release keys.
- 25cm DC power cord.
- Four 3 x 10mm screws and four M5 x 8mm screws.
- GPS antenna with 3m cable and adhesive ground-plane mounting pad.
- Adhesive tape pad.
The listed accessories do not replace the custom fitting kit required for your vehicle.
