Kenwood DMX6523DABS - 6.8” Screen, Wireless CarPlay Android Auto & Mirroring, Bluetooth, DAB

In stock
SKU: DMX6523DABS
Regular price £349.99

High Resolution WSVGA (1024 x 600px) LCD Display

The 1024x600px Wide Super VGA (WSVGA) display reproduces approximately 1.6 times higher resolution than the conventional WVGA display. You can enjoy finely detailed expression of color gradients and lifelike visuals in dramas and movies, enhancing your viewing experience.

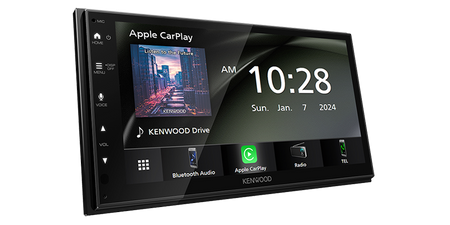

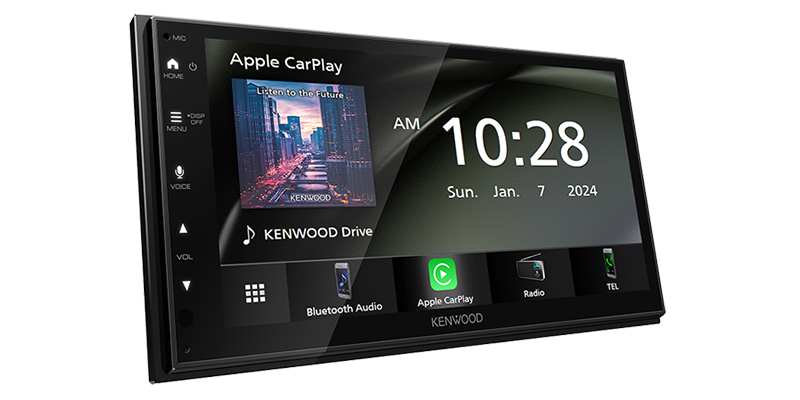

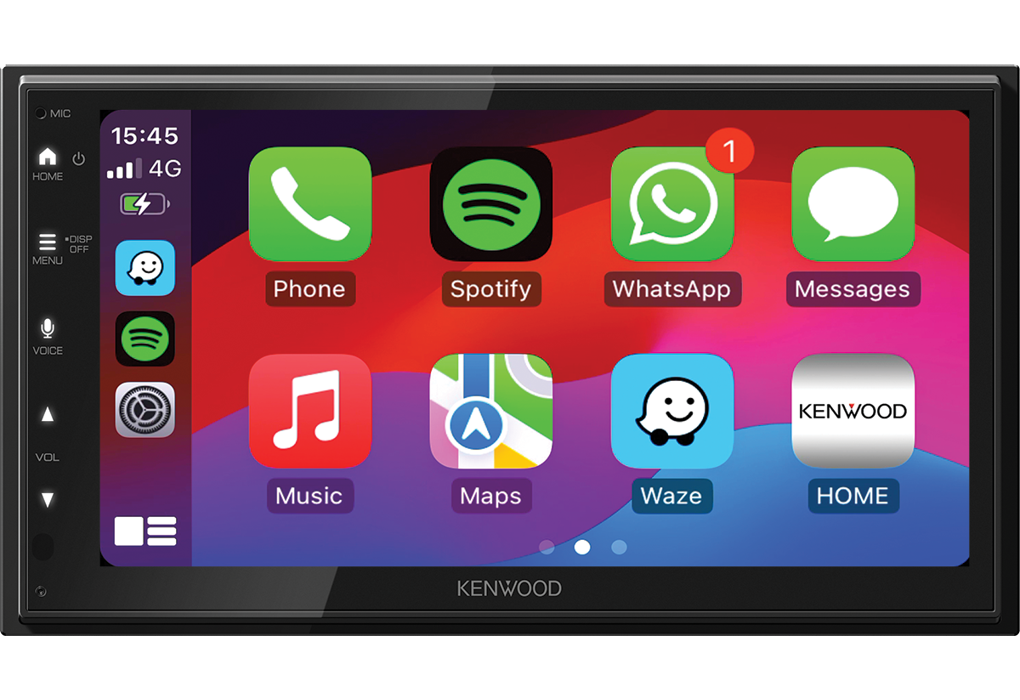

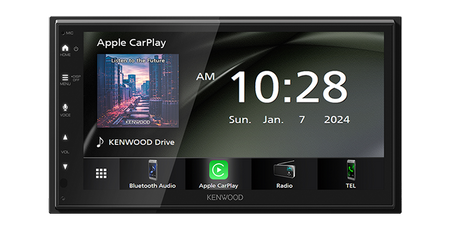

Apple CarPlay – Connect Wirelessly or via USB

A smarter, safer and more fun way to use your iPhone in the car. Apple CarPlay gives iPhone users an intuitive way to make calls, use Maps, and listen to music with just a word or a touch.

*Some features, applications, and services are not available in all areas.

Works with Apple CarPlay Badge

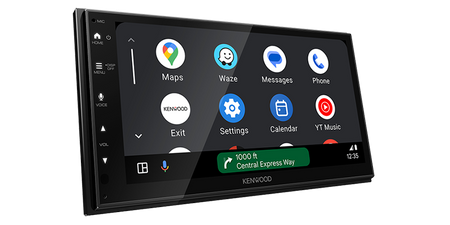

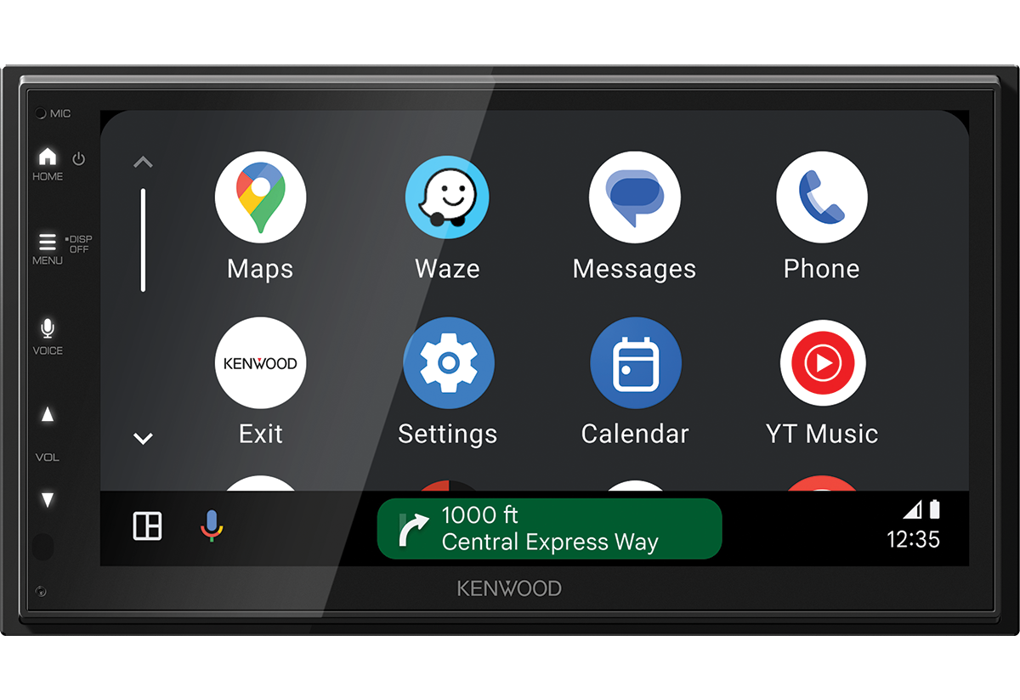

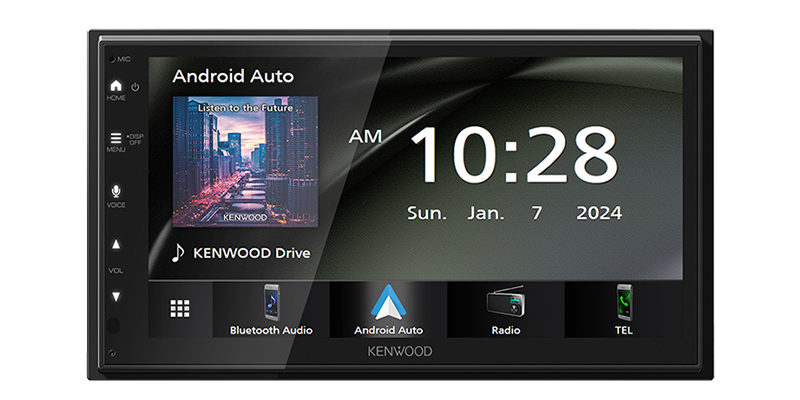

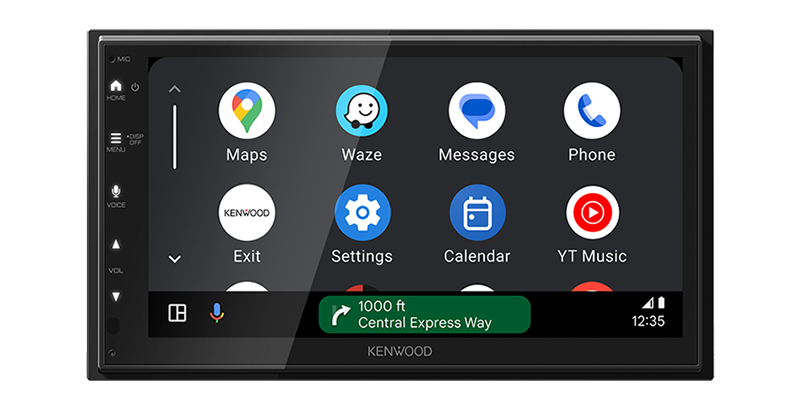

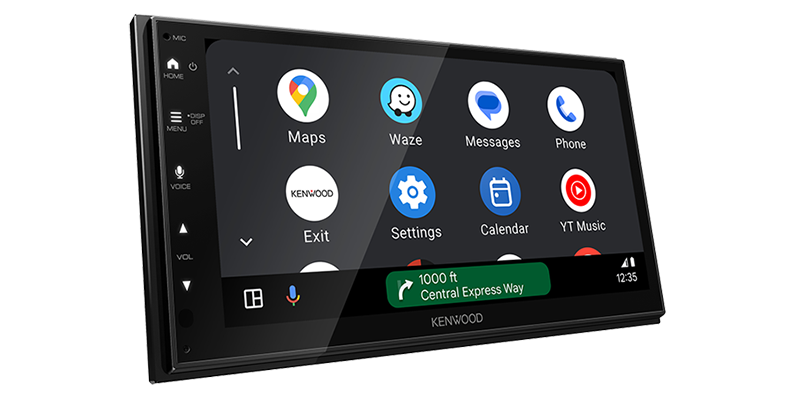

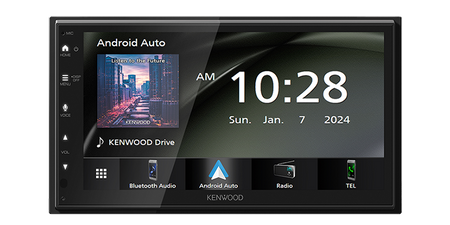

Android Auto™ – Connect Wirelessly or via USB

Android Auto was designed with safety in mind. With larger touch targets, a split-screen interface, and easy-to-use voice actions, it's designed to minimize distraction so you can stay focused on the road.

* Compatible Android phone required.

Works with AndroidAuto badge

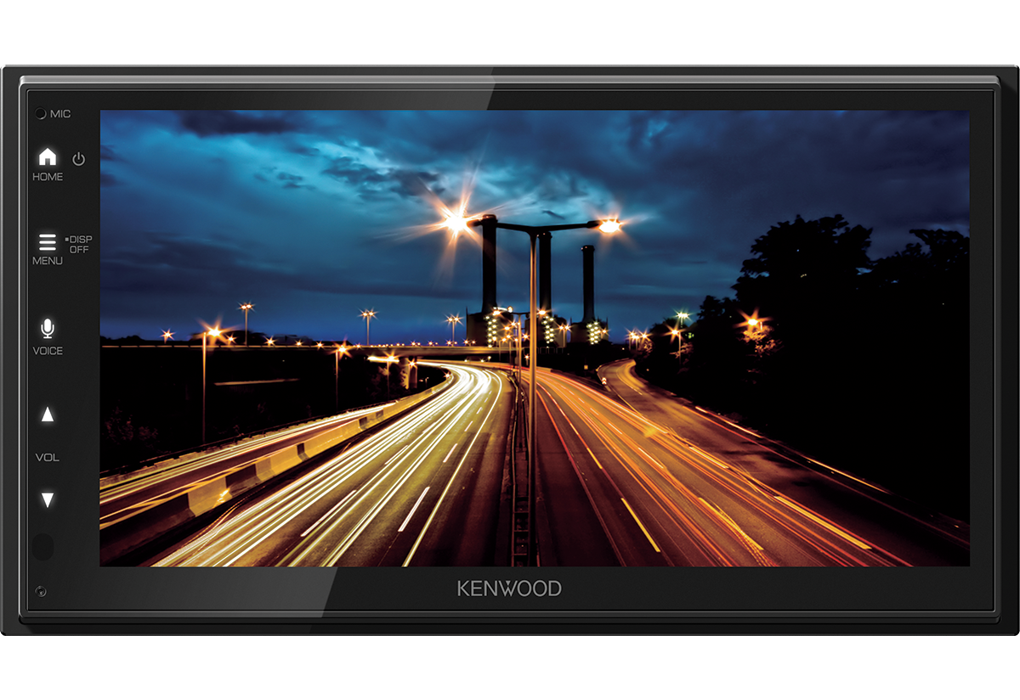

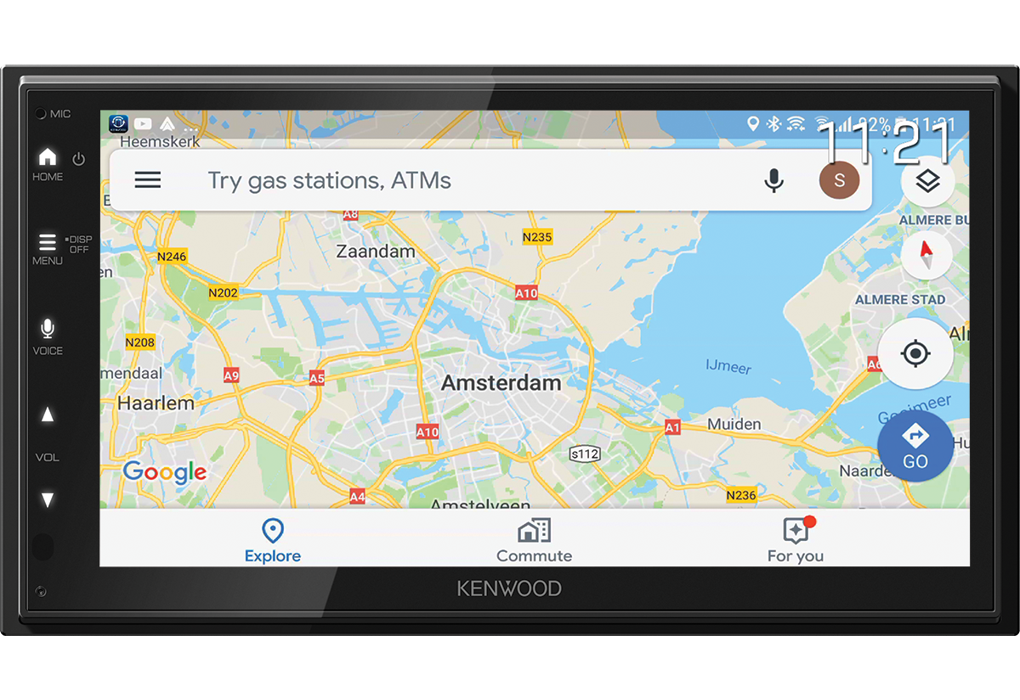

Wireless Mirroring for smartphone

By installing the “MirroringAPP+”, your iPhone & Android phone* screen is seamlessly displayed on the receiver's large screen wirelessly. You can enjoy a variety of apps such as Waze, YouTube, and Instagram. Touch control is possible from both screen and smartphone.

*Selected smartphones only

MirrorApp+ available in Play Store and App Store

Built-in DAB+ Digital radio Tuner

DAB+ is short for Digital Audio Broadcasting, meaning the digital transmission of sound. DAB+ radios are digital radios that are the successors of classic FM radios. DAB+ delivers CD-quality crystal clear sound and doesn't suffer from the same types of interference or static issues than with analogue AM/FM radio. Tuning is also easier: simply select your favourite radio station from the alphabetical station list.

Sound Adjustment Features

For optimal sound tuning enhancements.

2.5V - 3 preouts - DTA - X'over

Optimal Sound Performance with 13 Band Graphic EQ and Time Alignment

Use the graphic equalizer to tailor the sound quality to your unique tastes. Additional sound staging is available with the Time Alignment feature, designed to provide optimal sound performance.

Rear View Camera Input with Parking Guidelines

An optional rear view camera enhances safety while backing up and monitoring behind your vehicle. Built-in, adjustable parking guidelines further add to its effectiveness.

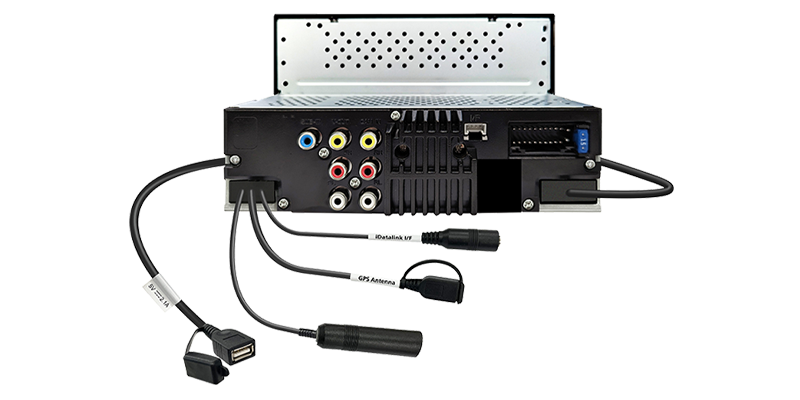

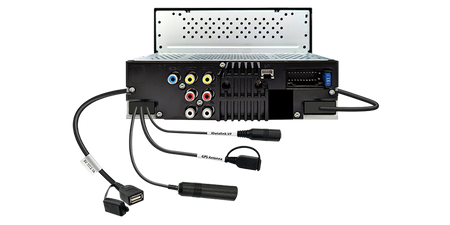

Easy installation with a compact rear chassis

Despite its double-DIN display, the L-shaped chassis is only half sized than conventional double-DIN units.
The reduced depth and the L-shape of the chassis contributes to a weight reduction and facilitates easier installation.

Key Features:

  • 6.8" WSVGA Display with Capacitive Touch Panel.
  • Wired & Wireless CarPlay® & Android Auto™
  • True Wireless Mirroring, 2-Way Touch Control for iPhone & Android
  • Built-in DAB+ Digital radio Tuner
  • Built-in Bluetooth® technology for Handsfree calling & Audio Streaming.
  • High Current 2.1A Charging USB port.
  • Front & Rear + Subwoofer (Mono) Preouts - 2.5V
  • 13 Band EQ & Digital Time Alignment
  • Rear View Camera Input with Parking Guidelines
  • Single DIN Short Chassis Design for easy installation

General

  • DIN Size 2 DIN
  • Smooth GUI
  • Selectable GUI Background Wallpaper
  • Key Illumination White colour
  • Attenuator with Smooth Volume Return
  • Touch Sensor Tone
  • Optional IR remote controller (KNA-RCDV331)
  • Digital Clock (24H)
  • Built-in Bluetooth
  • DAB Tuner Built-in
  • Made for iPhone
  • Apple CarPlay – Connect Wirelessly or via USB
  • Android Auto™ – Connect Wirelessly or via USB
  • Wireless Mirroring for iPhone/Android
  • Firmware upgradable

Multimedia GUI Features

  • OSDC Type Graphic
  • Menu text 14 languages:
  • English(UK)(Default)
  • English(US)
  • Spanish
  • French
  • German
  • Italian
  • Dutch
  • Portuguese
  • Arabic
  • Hebrew
  • Greek
  • Polish
  • Czech
  • Hungarian
  • Demonstration Mode
  • Top Menu Customize
  • Opening Screen Type standard
  • Wallpaper customizable 6 x presets + 2 x user set
  • R-CAM interrupt
  • R-CAM Parking Guide Lines, Built-in, customizable

Network & Wifi Features

  • WiFi built-in
  • Frequency Range 5 GHz (5,745– 5,825 GHz)
  • Output Power 5GHz / SISO: 13.78 dBm
  • Wireless connection for Apple CarPlay
  • Wireless connection for Android Auto
  • Wireless connection for iPhone & Android Mirroring With MirrorApp+ application

Tuner Features

  • FM Reception
  • AM (MW/LW) Reception
  • Tuning mode Auto1/Auto2/Manual
  • Up/Down Seek/Scan
  • Tuner Presets (FM/AM) 36 Presets (24FM / 12AM)
  • Automatic Memory Entry (AME)
  • Radio Data System
  • Radio Text Plus
  • Traffic Information
  • Local search
  • AF Regional Selectable: AF/AF Reg/OFF
  • Enhanced Other Networks Function (EON)
  • Program Type Function (PTY)

CE DAB Tuner Features

  • DAB+ tuner built-in
  • Digital Radio Certification Mark
  • Intelligent seek
  • Tuning mode / Seek mode Auto1/Auto2/Manual
  • Service preset 15 ch * 1 bank presets,
  • Service list by alphabet order
  • Alphabet Search
  • DAB-DAB/DAB-FM auto switch
  • Seamless DAB-FM blendings
  • DLS (Dynamic Label)
  • PTY (Programme Type) search
  • Announcement Switching (ASW) Select
  • Slide Show
  • Soft linking
  • Antenna power supply on/off switch

Bluetooth General Features

  • Hands Free Profile (HPF) Ver. 1.8
  • Audio Streaming (A2DP), (SBC/AAC)
  • Simple Secure Pairing (SSP)
  • Phonebook Access Profile (PBAP)
  • PBAP call history Up to 20 entries of dialed, received and missed calls
  • Audio/Video Remote Control Profile (AVRCP), V1.6
  • iPhone & Android automatic pairing via USB
  • Private mode
  • Interrupt call request
  • Voice Control
  • Noise Canceller
  • Echo Canceller
  • High-quality noise canceling microphone built-in
  • Bluetooth firmware upgradeable, Included in system updates

Playable Audio File

  • AAC (*.aac) files are playable USB
  • MP3 files are playable USB
  • WMA (.wma) files are playable USB
  • WAV (.wav) files are playable USB
  • FLAC files are playable USB

CE_Playable Video File

  • MPEG1/2 files are playable USB
  • MPEG4 files are playable USB
  • WMV files are playable USB
  • H.264 files are playable USB
  • mkv files are playable USB

USB Features

  • USB terminal, rear side / 1m cable / fix
  • USB Type 2.0 High speed
  • Drive Change
  • File System FAT16 / FAT32 / exFAT / NTFS
  • Tag Information Display
  • Album Art Display
  • Repeat Play Folder/File/All
  • Random play Folder
  • Category search
  • Link Search
  • Last Position Memory / Resume
  • Time code display
  • USB ports maximum output current 2.1A

iPhone Features

  • Connection via: USB / Bluetooth
  • Plug & Play
  • Made for iPhone
  • Tag Information Display
  • Time Code Display
  • List Access
  • Album art support
  • Random Play
  • Repeat Play
  • Skip
  • iAP over Bluetooth
  • Works with Apple CarPlay Wired & Wireless

Android Phone Control

  • Connection via USB / Bluetooth
  • Works with Android Auto Wired & Wireless
  • Android Open Accessory Protocol (For Android Auto)

Audio Features

  • Max. Output Power 4 x 50W
  • Primary Power Output 4 x 22W
  • Pre-out 2 RCA : FRONT/REAR + SUB(mono)
  • Pre-out Output Level 2.5V
  • Volume Offset
  • Volume Type DSP
  • Built-in Amplifier Off
  • Balance/Fader Control
  • Beep On/Off

Multimedia DSP Features

  • Position Preset 4 Presets
  • Position Preset
  • Graphic Equalizer 13 bands
  • G-EQ manual setting
  • G-EQ adjustable level, +9db / -9dB
  • Time Alignment 0 ~ 610cm
  • HPF Cut Off Frequency 14 steps
  • HPF Cut Slope Level 4 steps
  • Low Pass Filter (LPF) (Non-Fading)
  • LPF Cut Off Frequency 14 steps
  • LPF Cut Slope Level 4 steps
  • X'over
  • Speaker Size Control
  • Channel Level Control
  • Loudness
  • Tweeter volume
  • Bass Boost
  • Source Volulme Offset source independent

Connectivity

  • DC-Cord 22pin (New Type) to ISO
  • Reverse sensor wire
  • Parking sensor (handbrake) wire
  • Power Control (P.CON) wire
  • Dimmer control wire
  • Preout 2 x RCA (Front/rear) + Sub (mono)
  • AV-Input (Non Switchable) (Mini-jack) audio & video
  • Video Out RCA x1 (Source: USB)
  • Rear View Camera Input Dedicated RCA Video-in
  • GPS Aerial Input GPS antenna included
  • FM Antenna Input  JASO connector
  • DAB Aerial input SMB
  • External microphone input 3,5mm mini-jack
  • OEM Wired Remote Control ready, Optional interface needed
  • Learning Steering Remote Function
