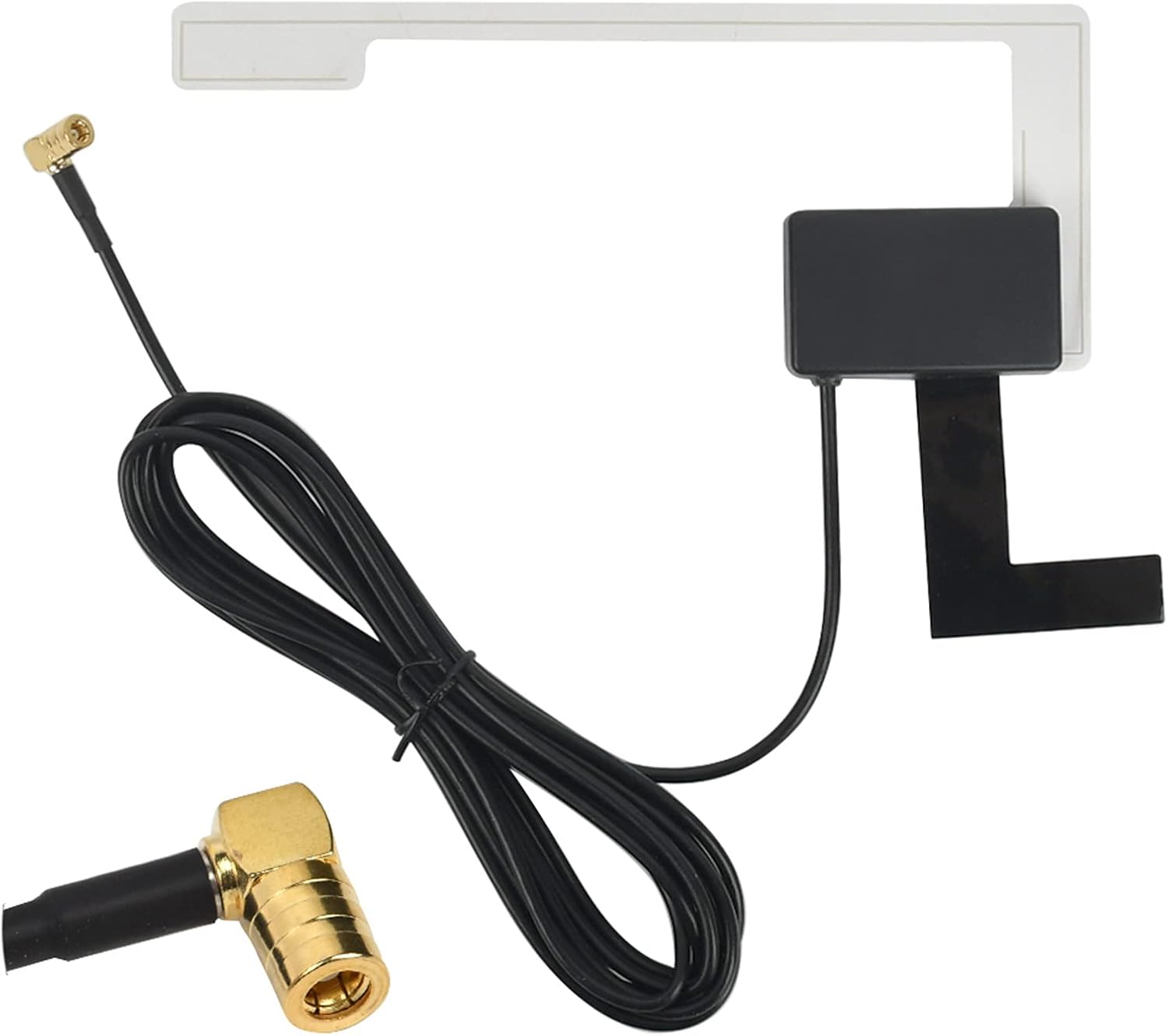

DAB-A1 DAB Glass Windscreen Mount Antenna with SMB Push-Fit Connection
Need Help?
DAB-A1 DAB aerial is designed for aftermarket stereos that feature a SMB, push-fit (no screw) connection.

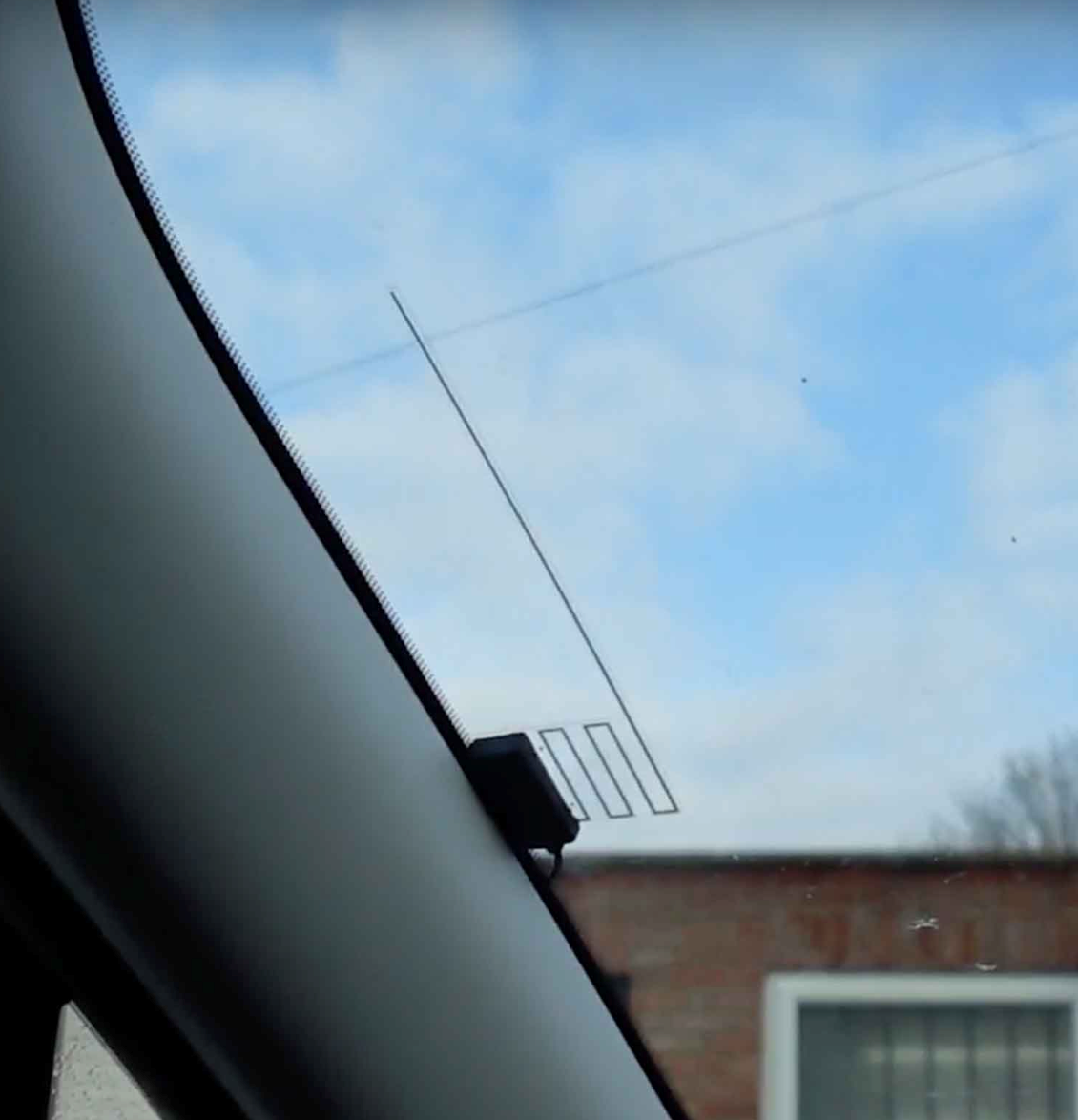

This is a discrete DAB window film aerial avoiding the need to drill a hole in the vehicles body as previously required with less sensitive receivers.
Key Features
- Active antenna
- Band 2 reception
- Low noise integrated amplifier
- Earth bond contact for superior reception
General Features
- Operating Temp. -30degrees~+80degrees
- Storage Temp. -40degrees~+85degrees
- Recommended temp. for ELEMENT installation +10degrees~30degrees, Less than 80%RH
- Weight App.45g
- Frequency Band
- Band :174~240MHz
- L-Band :1452~1492MHz
- Power supply voltage DC+9.0~+16.0V (DC+12.0V Typ.)
- Output Impedance 50O(The official)
- Cable type/length 0.8D/3.5m
- Connector SMB type
