JVC KW-M785DBW 6.8" Double DIN Wireless Apple CarPlay Android Auto Mirroring WiFi DAB+ Bluetooth

Digital Media Receiver featuring 6.8" Capacitive Touch Monitor / Wireless Apple CarPlay, Android Auto & Android Mirroring / DAB+ tuner / Hi-Res Audio / Bluetooth® / 13-band EQ / Rear Cam Input / Short Chassis

Features

• 6.8" WVGA capacitive touch panel with sharp, high-contrast images, vivid colours and wide viewing angles.
• Wi-Fi built-in for convenient wireless connection with a compatible smartphone.
• Supports Android Auto & Apple Car Play wirelessly and with a USB cable.
• Bluetooth(R) Wireless Technology (*Available functions depend on cell phone).
• Rear High Speed USB port. Up to 1.5A Max Charge.
• MP3 / WMA / AAC / WAV / FLAC - music file playback.
• MPEG1 / MPEG2 / MPEG4 / H.264 / MKV / WMV - video file playback.
• Digital Sound Processor, Time Alignment & 13-Band EQ for optimal sound tuning enhancements.
• 3 RCA line outs (2.5V) to upgrade your system with power amplifiers to create a more immersive audio experience.
• 1x AV input / 1x Video output / 1x Rear View Camera input.
• DAB+ radio tuner for noise & interference free reception and crystal-clear digital stereo sound.
• Supports USB Mirroring for Android with Mirroring OA for JVC App.
• Short chassis (75mm) for easy installation.
• Steering wheel remote control adapter input (Optional, car specific interface required).
• Wireless IR remote controller ready.

Monitor

• Screen Size 6.8 inches (diagonal) wide
• Touch Control
• Panel Type WVGA Capacitive
• Display System TN LCD panel
• Drive System TFT active-matrix system
• Number of Pixels 1,152,000 (800 x 480 x RGB)
• Effective Pixels 99.99 %
• Pixel Arrangement RGB stripped arrangement
• Back Lighting LED
• Key Illumination Colour RGB
• Variable Colour Illumination
• Dimmer, Manual/Sync (Auto/On/Off)
• Customizable GUI
• Multilingual Display Yes, 14 languages: English (UK/US) / Spanish / French / German / Italian / Dutch / Russian / Portuguese / Hebrew / Greek / Polish / Czech / Hungarian.
• Viewing Angle Adjustment (0 - 20-degree, default: 0 degree) 4steps

Radio Tuner

• DAB+ Tuner
• DAB+ Frequency Band III 174.928MHz to 239.2MHz
• DAB-DAB / DAB-FM Auto Switch
• Seamless DAB-FM Blending
• FM Tuner
• Radio Data System (RDS), (with Radio Text Plus)
• FM Stereo/Mono Switch
• FM Frequency Range 87.5 ~ 108.0MHz (50kHz step)
• FM Usable Sensitivity 6.2dBf (0.56μV/75 ohms)
• FM Quieting Sensitivity (46dB) 15.2dBf (1.58μV /75 ohms)
• FM Stereo Separation 40 dB (1kHz)
• AM Tuner
• AM Frequency Range 531kHz ~ 1,611kHz (9kHz Frequency Step)
• AM Sensitivity 28.5 μV
• Preset Stations 20 (FM:15ch, AM:5ch)
• Tuner Preset Memory
• Automatic Preset / SSM

Media Playback

• Audio Decoder
• MP3 Compatible with Tag
• WMA Compatible with Tag
• WAV Compatible with Tag
• AAC Compatible with Tag
• FLAC Compatible with Tag
• Video Decoder
• MPEG-1 / MPEG-2 Compatible
• MPEG-4 Compatible
• WMV Compatible
• H.264 Compatible
• MKV Compatible
• JPEG File Playback For user background only
• BMP File Playback For user background only
• PNG File Playback For user background only

USB

• USB Port(s) x 1
• Location Rear
• USB Standard x1 (High Speed)
• File System FAT16 / FAT32 / exFAT
• USB Mass Storage Class
• Drive Change Mode for Mass Storage Class
• Tag Information Display
• Album Art Display
• List Access
• Alphabet Search
• Category search
• Link Search
• Random / Repeat Play
• Skip
• Time Code Display
• Last Position Memory / Resume
• Digital / Analog Converter (DAC) 24 bit
• Frequency Response 20 Hz ~ 20kHz
• Total Harmonic Distortion (THD) 0.01 % (1 kHz)
• Signal-to-Noise Ratio (S/N) 98.5 dB
• Dynamic Range 89 dB
• 1.5A Max. Power Supply Current

Bluetooth®

• Built-In Bluetooth (Version 5.0)
• Voice Dialling
• Supported profiles Multi Profile
• Hands Free Call (HFP) HFP1.8 Wideband Speech
• Advanced Audio Distribution Profile (A2DP) V1.3.2
• Audio/Video Remote Control Profile (AVRCP) V1.6.2
• Phone Book Access Profile (PBAP)
• Alphabetical Search for Phone Book
• Serial Port Profile (SPP)
• 2 Phones Full-Time Connection
• Audio Codec AAC / SBC
• JVC Streaming DJ with up to 5 Bluetooth devices
• Auto Pairing
• Noise Canceller
• Echo Canceller
• Wired Microphone included

Wi-Fi Control

• Built-in Wi-Fi
• IEEE Standard 802.11 a/b/g/n/ac
• Frequency Range Dual Band (2.4GHz/5GHz)
• Android Control

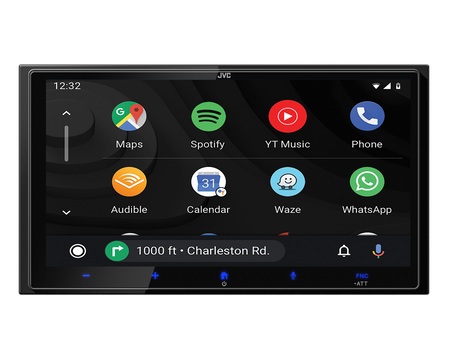

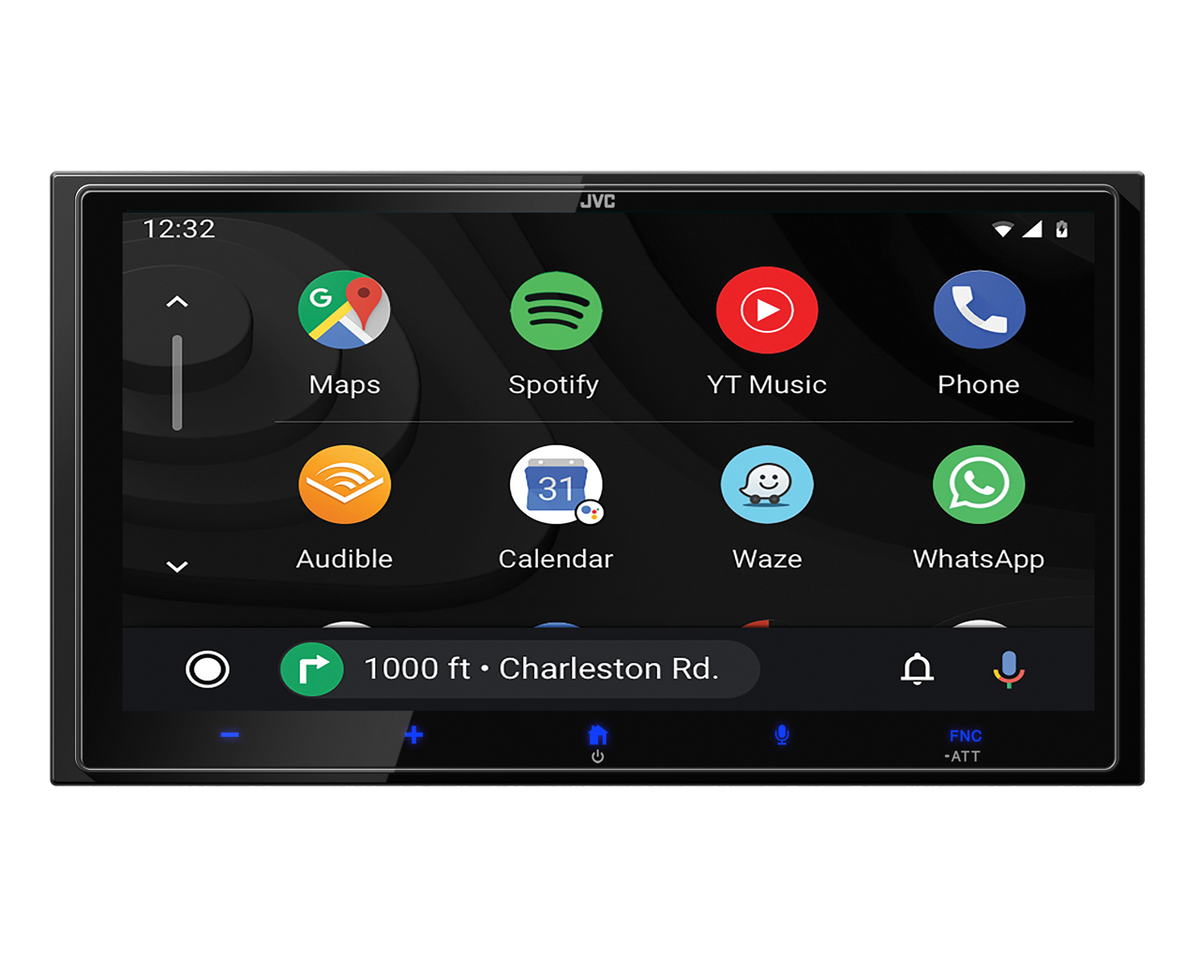

Android Auto

• Android Auto wired (via USB)
• Android Auto wireless (WiFi)
• Wired mirroring (via USB / mirroring app needed)

iPod/iPhone Control

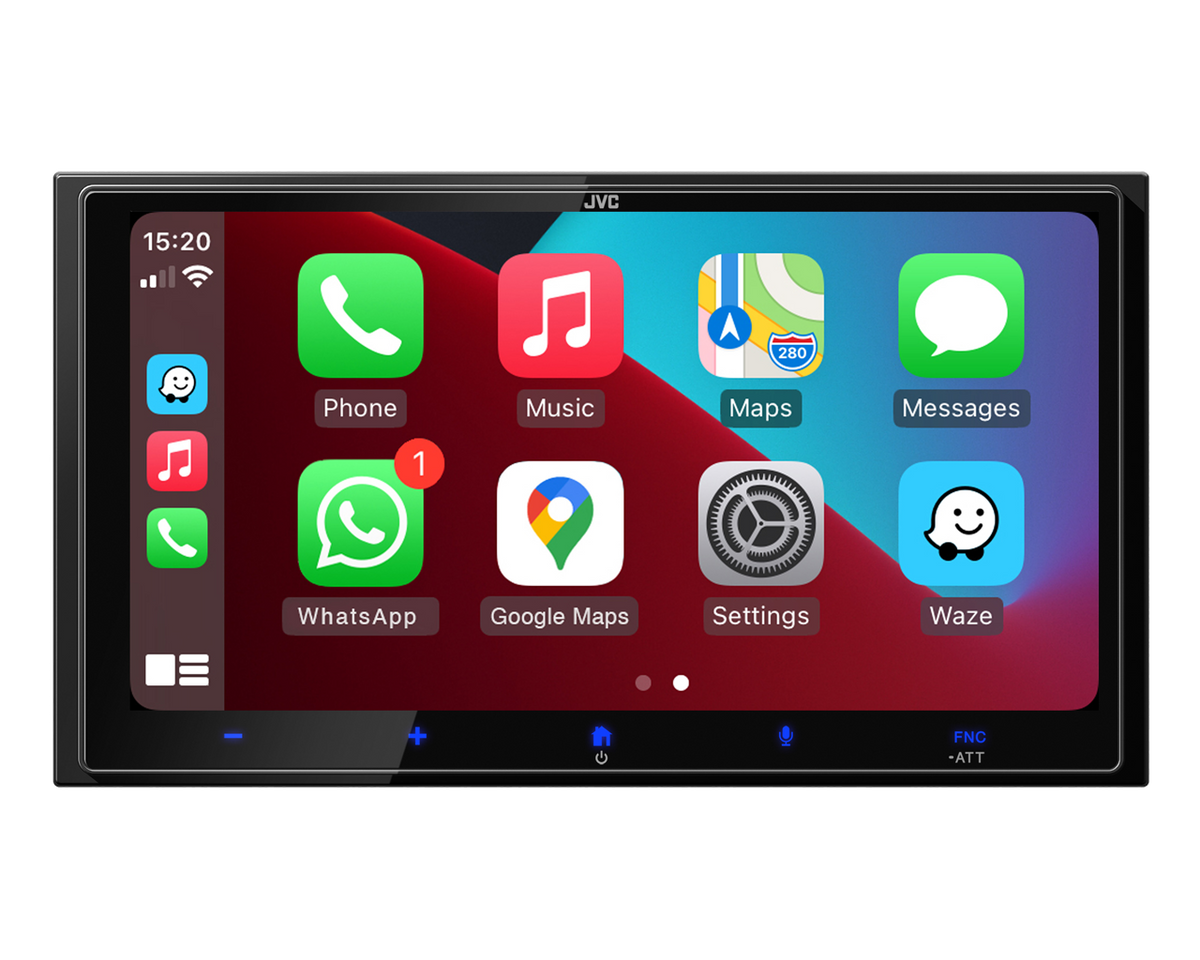

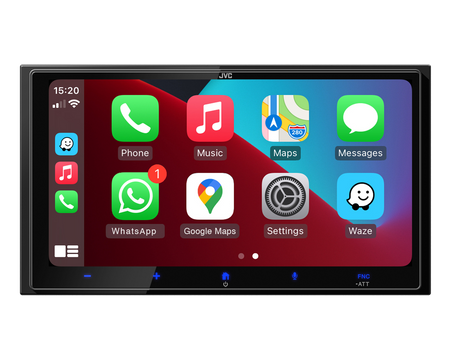

• CarPlay
• CarPlay wired (via USB)
• CarPlay wireless (WiFi)

App(s)

• Mirroring OA for JVC
• Google Play (Android) - https://play.google.com/store/apps/details?id=com.jvckenwood.mirroringOAjvc&hl=en&gl=US

Audio

• Maximum Power Output (Front & Rear) 50W x 4
• Full Bandwidth Power (at less than 1%THD) 22W x 4 (Front & Rear)
• Speaker Load Impedance 4 Ω ~ 8 Ω
• Output Frequency Band 20 Hz ~ 88.000Hz
• Equalizer
• 13-Band Graphic EQ
• Preset EQ Preset x8 + User x4 / Source
• Volume Link EQ
• 3-Way X'over
• High-Pass Filter/Low-Pass Filter
• Digital Sound Processor (DSP)
• Time Alignment
• Time Alignment
• Sound Enhancement
• Space Enhancement
• Sound Response
• Sound Lift
• Loudness Control
• Bass Boost (Hyper Bass System)

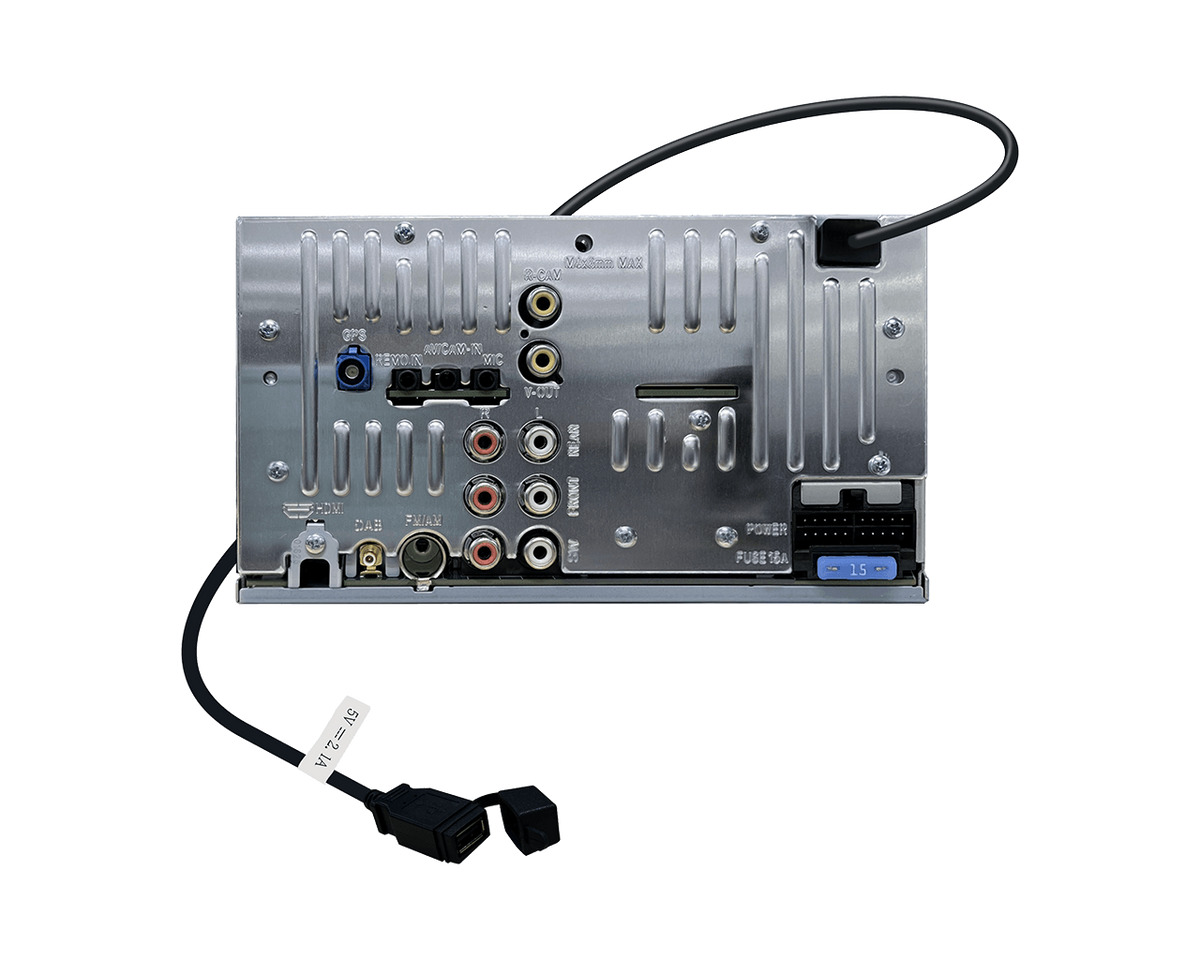

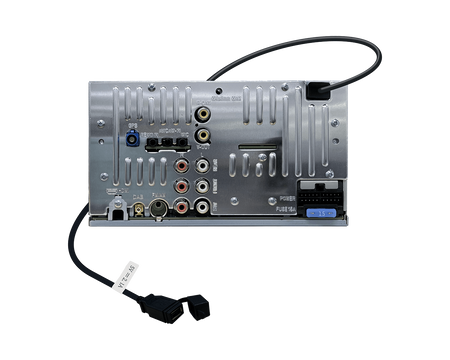

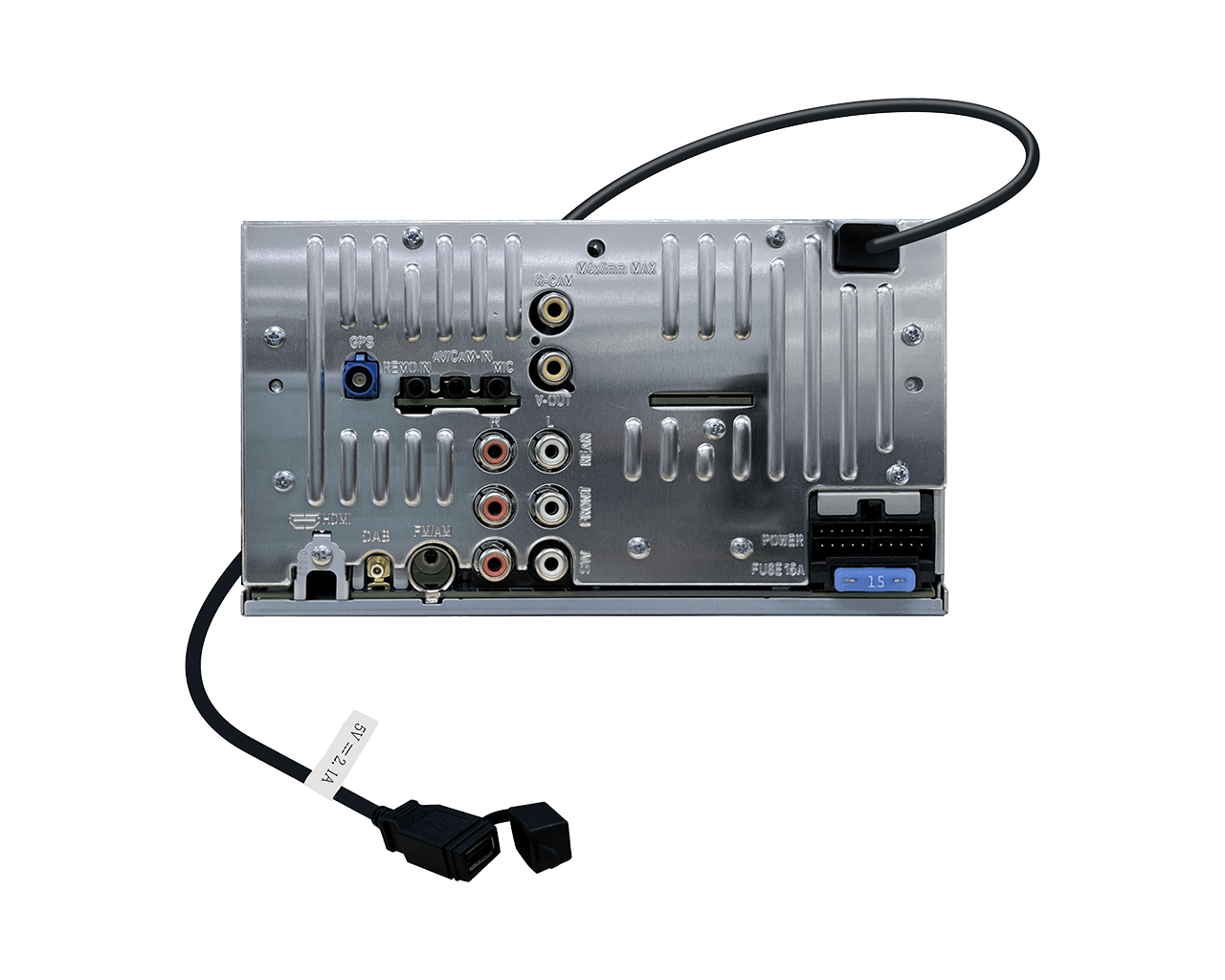

Inputs and Outputs

• Audio Inputs and Outputs
• Pre-Out Terminals 3 Pairs (Front + Rear + Subwoofer)
• Pre-Out Impedance Less than 600 ohms
• Pre-Out Level/Impedance 2.5V/10k ohms
• Audio Output level (mini jacks) 2V / 25k ohms
• Subwoofer Output with Level/Frequency Control
• Video Inputs and Outputs
• Video Input Level/Impedance 1.0Vp-p / 75 ohms
• AV Input mini jack (AV-IN or Camera switchable)
• Video Out RCA
• Colour System NTSC/PAL
• Video Output Level/Impedance 1.0Vp-p / 75 ohms
• Camera inputs

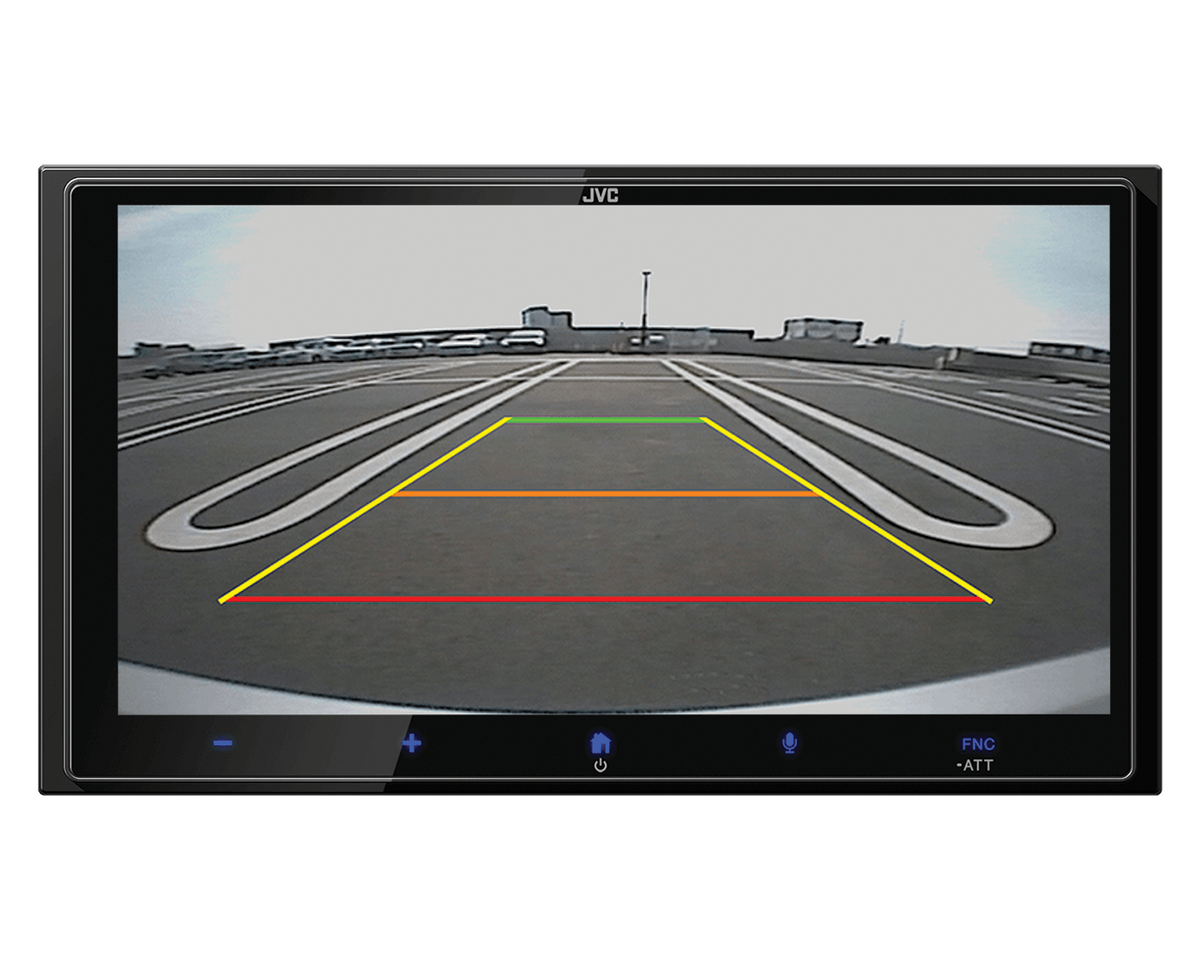

• Rear view camera Input
• Convert AV-input to camera input

General

• Back Up Memory
• Installer Memory
• GPS Antenna Input
• DAB Antenna Input
• Wireless Remote Control Ready (RM-RK258 required)
• Wired Steering Remote Control Ready
• Learning Direct OEM Remote
• ISO Connector 16pin Mitsumi to ISO Wiring harness

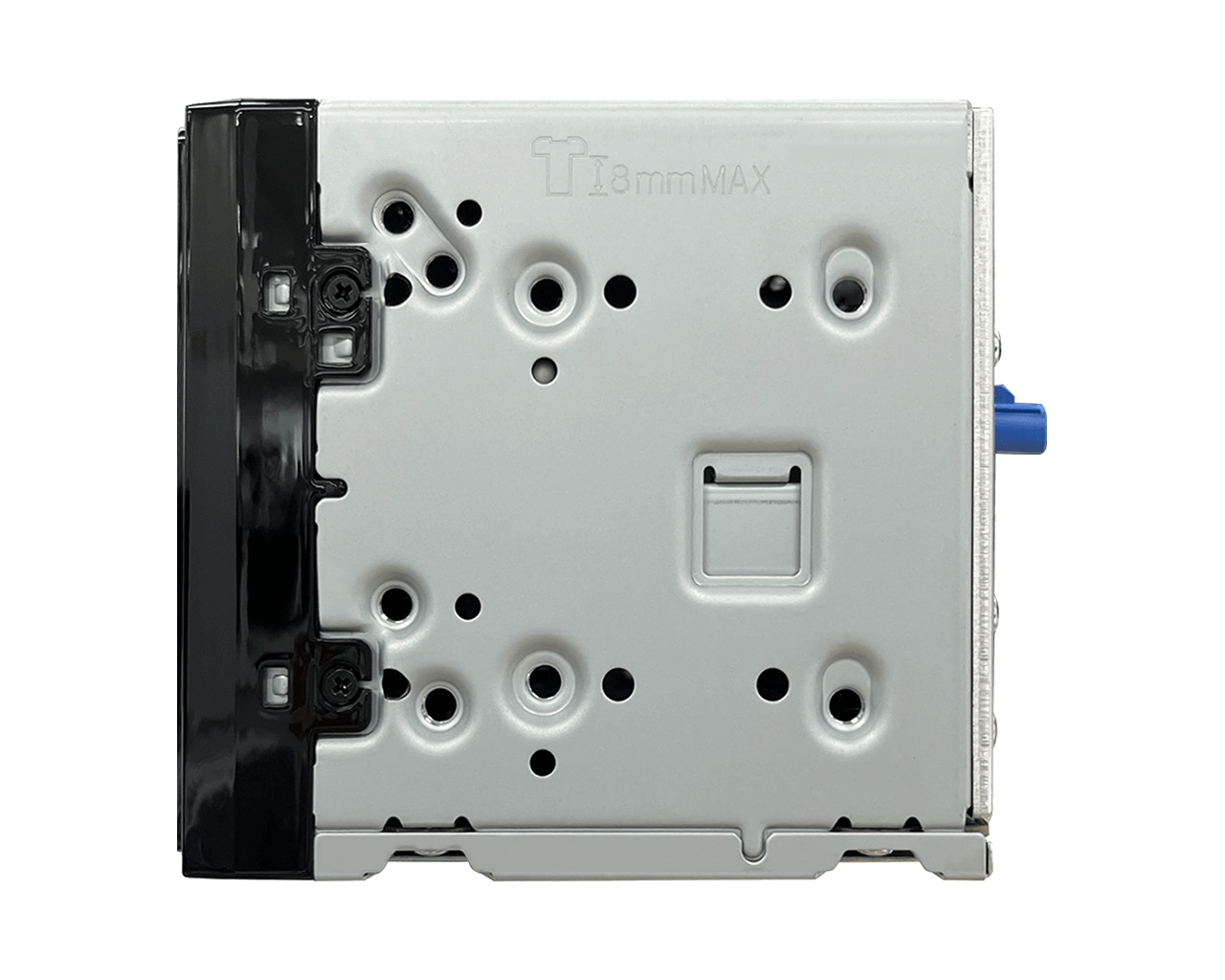

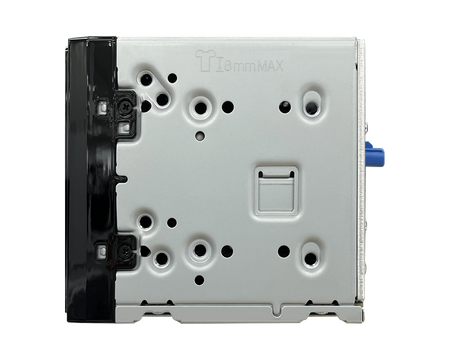

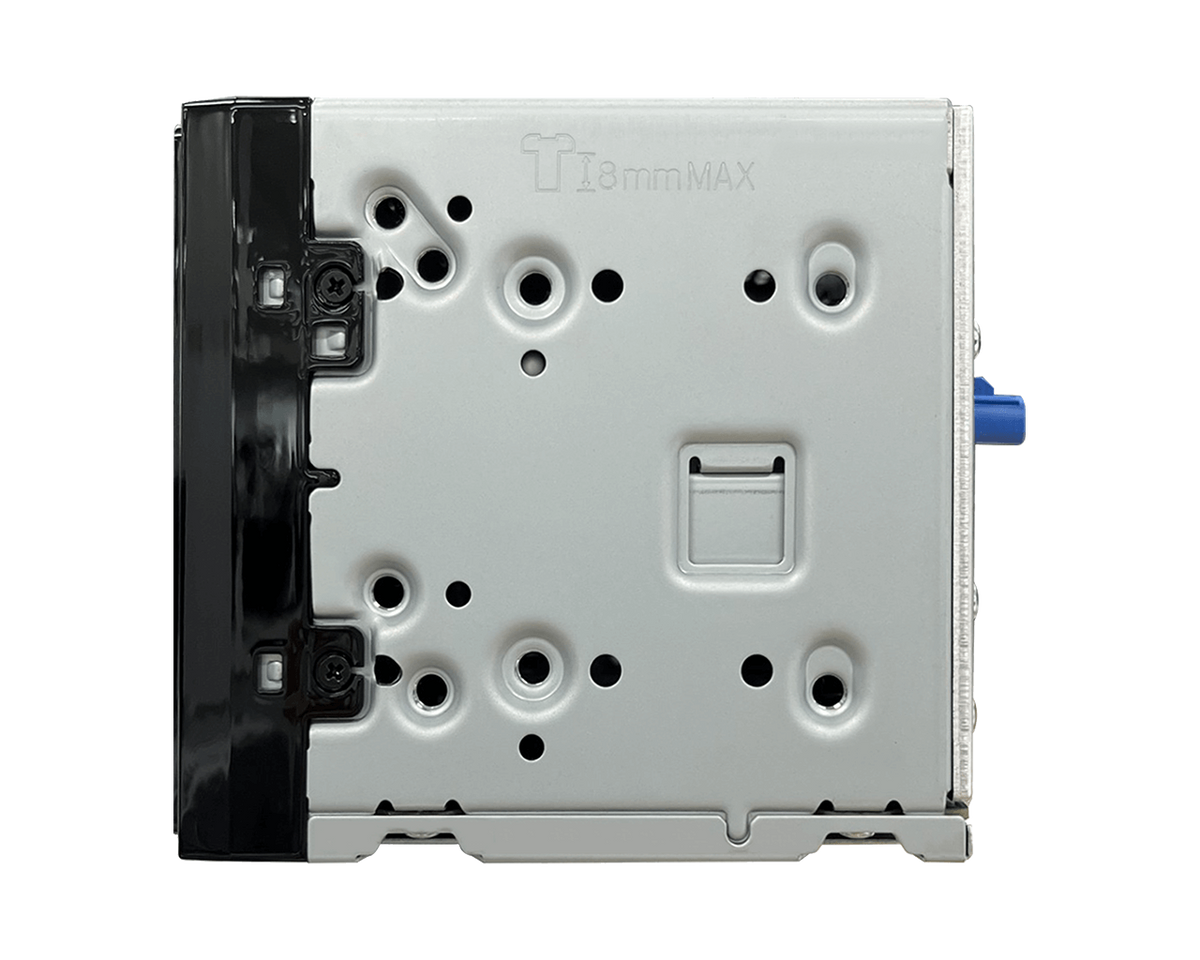

• Short Chassis
• Operation Voltage 12 VDC
• Dimensions (W x H x D) 180mm x 100mm x 75mm
• Installation Size (W x H x D) 182mm x 111mm x 75mm
• Weight, including sleeve and escutcheon 1.2kg
