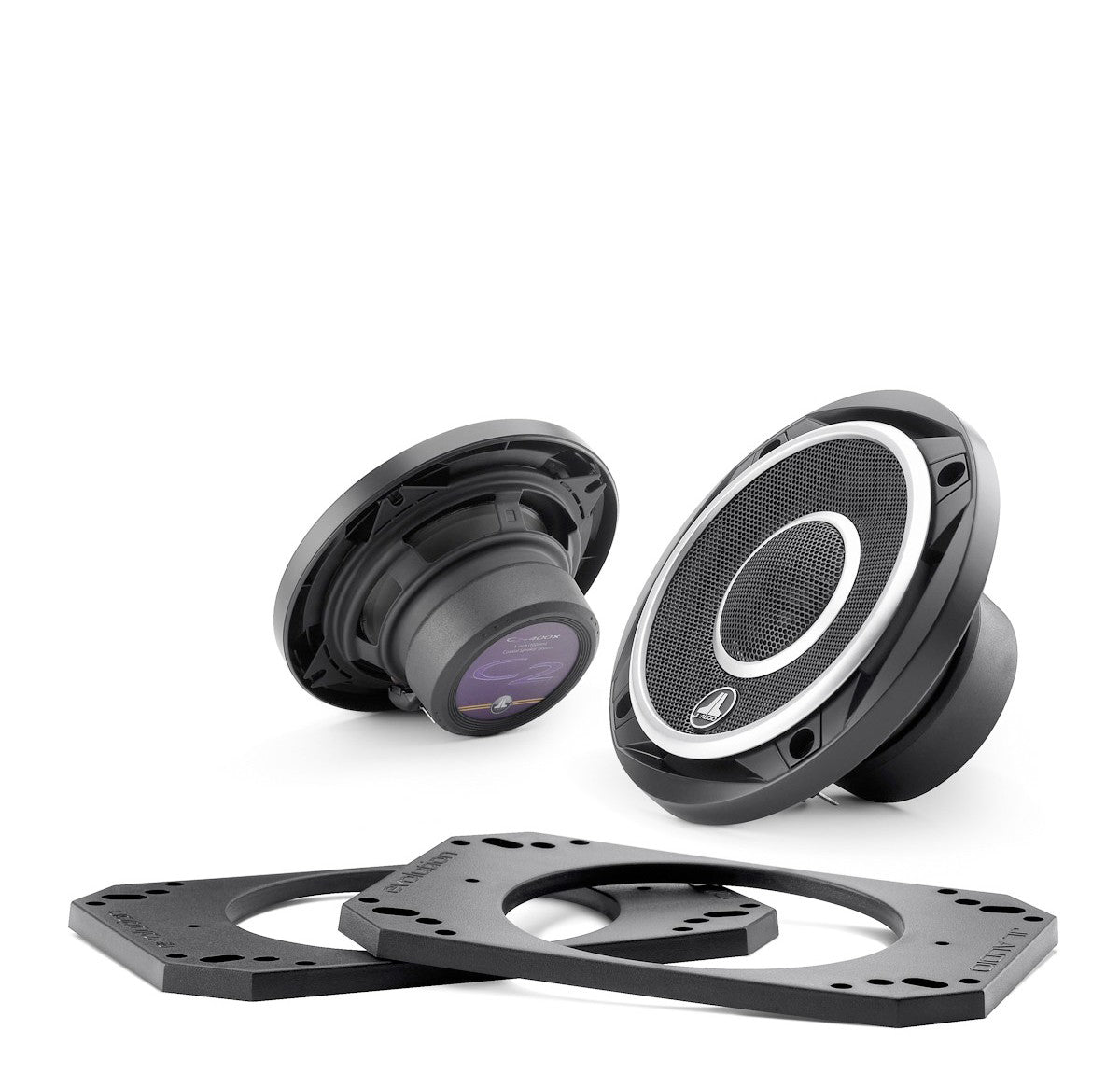

JL Audio Evolution C2-400x 4-inch (100 mm) Coaxial Speaker System
Need Help?
JL Audio Evolution C2-400x For a car speaker to excel it must be thoroughly engineered in all areas. The woofer design must deliver sufficient efficiency, smooth mid-range response and good low-frequency extension. The tweeter must be smooth off-axis, exhibit good extension and be non-fatiguing, while the crossover design must seamlessly blend the sound of the drivers so that the end result is clean, realistic audio performance.
In designing the new Evolution C2-400x, JL Audio have drawn from their vast experience in woofer design as well as the tweeter technologies employed in their world-class C5 component systems. The resulting products deliver a compelling performance solution at a price within reach of any enthusiast seeking a great listening experience.
All JL models include removeable front-loading protective grilles with a striking new design that combines black steel mesh with satin silver accents. Electroformed logo nameplates can be positioned on the grilles or elsewhere in the vehicle, according to the needs of the installation.
General Specifications:
- Continuous Power Handling (RMS) 35 W
- Peak Music Power 105 W
- Recommended RMS Amplifier Power (per Ch.) 10 - 50 W
- System Efficiency 84.5 dB @ 1 W / 1 m
- System Nominal Impedance 4 Ω
- System Frequency Response 71 Hz - 22 KHz ± 3 dB
Coaxial Physical Specifications:
- Frame Outer Diameter* (A) 4.02 in / 102 mm
- Grille Tray Outer Diameter (B) 5.20 in / 132 mm
- Magnet Outer Diameter (C) 2.36 in / 60 mm
- Frontal Coaxial Tweeter Protrusion** (D) 0.56 in / 14 mm
- Frontal Grille Protrusion*** (E) 0.66 in / 17 mm
- Mounting Hole Diameter (F) 3.81 in / 97 mm
- Mounting Depth (G) 1.81 in / 46 mm
***Frontal grille protrusion measured from mounting surface
