JBL Stage GT 80021 - 800W Class D 2 Channel Amplifier
Need Help?
Compact 2-channel amplifier with JBL power
The JBL Stage GT 80021 is a powerful two-channel Class-D amplifier. Its compact size makes it easy to fit into any vehicle while still delivering impressive performance. Choose a stereo setup or bridge the channels for subwoofer use. Adjustable filters and bass EQ let you tailor the sound to your setup.
Key Specifications
- Maximum power: 800W peak
- RMS power: 130W x 2 @ 2 ohm / 80W x 2 @ 4 ohm / 260W x 1 @ 4 ohm (bridged)
- Frequency response: 20Hz – 20kHz ±1dB
- Total Harmonic Distortion (THD+N): 1%
- Input sensitivity: 0.2V – 5V (low); 1V – 25V (high)

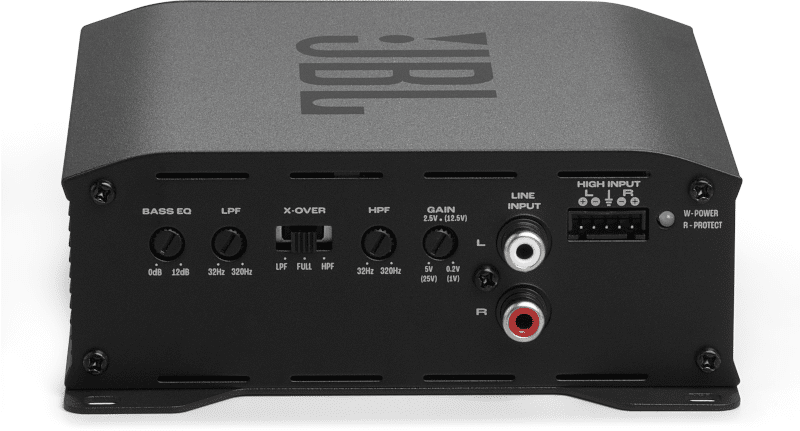

- Adjustable bass EQ: 0–12dB at 45Hz
- High/Low-pass filters: 32Hz – 320Hz (adjustable)
- Protection: against short circuit, over/under voltage and overheating
- Supply voltage: 9V – 16V

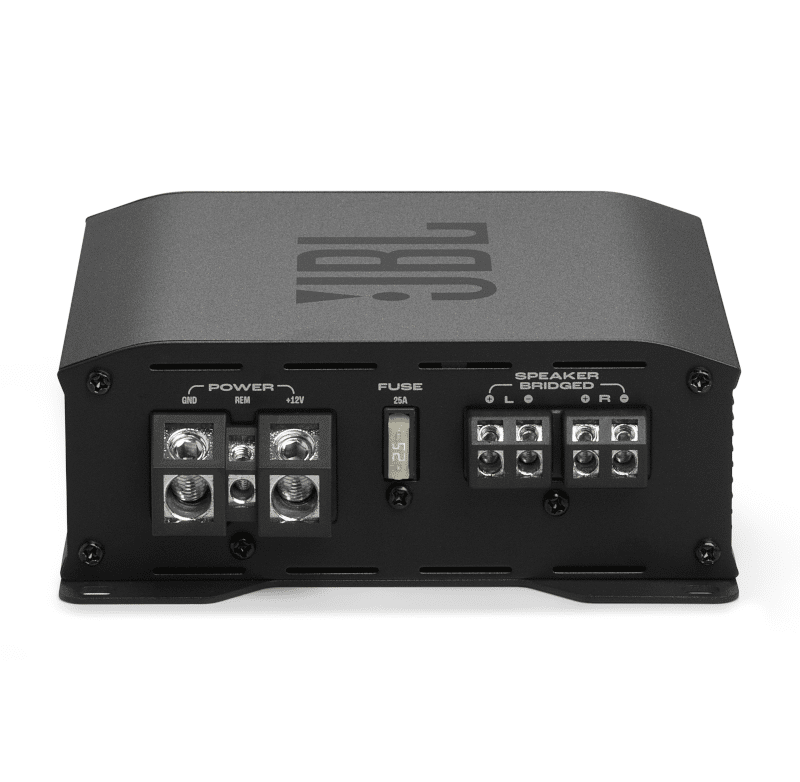

- Fuse: 1x 25A
What's in the box?
- 1x JBL Stage GT 80021 amplifier
- 2x Spare fuse

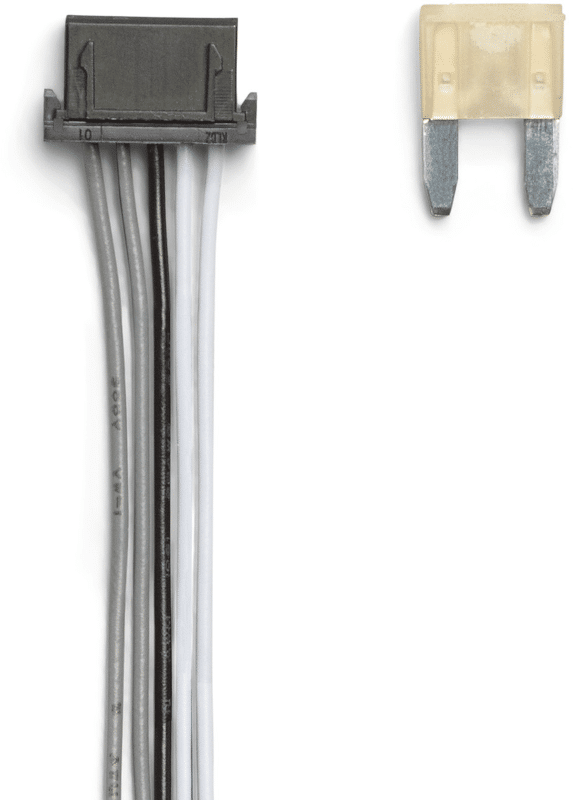

- 1x High-level input cable
- 4x Mounting screw with washer
- 2x Allen key
- 2x JBL sticker
- 1x QR code for manual
- 1x Safety Instruction
