Home » Blaupunkt Durban 424 DAB BT 24V Lorry HGV Stereo (24 Volt)

Blaupunkt Durban 424 DAB BT 24V Lorry HGV Stereo (24 Volt)

SKU: Durban 424 DAB BT
£249.99

Need Help?

Email 020 3336 2751



Radio

  • High-End CODEM IV World tuner
  • FM, AM, DAB, DAB+ tuner
  • Radiotext/DLS
  • Traffic function
  • Alphabetical DAB-List
  • Travelstore
  • Service following
  • Preset and Band Introscan

Mediaplayer

  • 2x USB-Input
  • MP2-, MP3-, WMA-, FLAC-, M4A (AAC)-, APE-, WAV-Support
  • AUX-Input (3,5mm)
  • Intro scan
  • Fast FF/REW with Sound
  • Browsing function
  • Multiple Folder Support
  • Apple iPod Support

Bluetooth

  • Int. and ext. microphone support
  • Audio streaming with track info
  • Access to voice assistant (e.g. Siri, Google, Alexa)
  • Wake-up on call
  • Phonebook access
  • Favorite memory

Sound

  • Sound Presets
  • Loudness
  • Semiparametric Equalizer (3 Bands)
  • 4-Channel Pre-Amp Output + 2 Sub-Out
  • 4x 50 Watt

General

  • Ultra short body (only 8 cm)
  • Wide-angle display
  • Multicolour (7 colours)
  • DIM function
  • Permanent memory
  • Microphone Input (6.3 mm)
  • IR-Remote Sensor
  • SWC-Input (analoge)
  • 24 Volts
  • Deactivatable ACC detection
  • Charging of mobile devices

RADIO ANALOG / DIGITAL

Tuner Type: High-End Automotive Tuner Blaupunkt CODEM

World Tuner (switchable): EU, Asia, USA, South America, Thailand, Japan

Frequency bands: FM, AM, DAB, DAB+
Frequency band FM: 87,5 108 MHz
Frequency band MW: 531- 1602/ 530- 1710 kHz
Channels (frequency band) DAB/ DAB+: 5A- 13F (174,928- 239,200 MHz)

Station memory: 15x UKW, 10x AM, 15x DAB
Station memory levels: FM1, FM2, FMT, AM, AMT, DAB1, DAB2, DAB3
Station memory levels deactivatable: FM2, FMT, AM, AMT, DAB2, DAB3

Station display (PS): Yes
Radiotext/ RadiotextPlus (RT/ RT+): Yes/ No
Display DLS/ ENSEMBLE/ SERVICE: Yes/ Yes/ Yes
Alternate frequency function (AF): Yes
Traffic Radio (TA) FM/ DAB:  Yes/ Yes
Automatic time setting: Yes
Enhanced Oth. Netw. (EON): No
Regional function (REG): Yes
Program type identifier/ -seek (PTY) FM/ DAB: Yes/ Yes

Travelstore/ Number of Memory: Yes/ 5x  FMT, 5x AMT
Band Scan + PresetScan: Yes/ Yes

Sensitivity (FM) Two levels (lo / dx)
Noise suppression (FM): Yes
Hi-Cut (FM): Yes (multi-level switchable)

DAB Service list: Yes, alphabetical
DAB-DAB Service following: Yes
DAB-FM Service following: Yes
Service scan: Yes
Ensemble/ Service change: Yes/ Yes
Ensemble/ Service browsing: Yes/ Yes

Frequency response FM: 30 15.000 Hz
Frequency response DAB: 20 20.000 Hz



MEDIAPLAYER

AUX rear: Yes (Cinch/ RCA)
AUX detection/ source activation: No/ manual via settings
USB front: yes (type A, with dust proof cover)
USB rear: Yes (type A, with dust proof cover)
Memory card reader: No
Concealed front inputs (dust proof): Yes (USB, Microphone)
Compatible formatting (USB): FAT16, FAT32, exFAT
Maximum storage size (USB, memory cards): > 128 GB
Maximum file/folder count (USB, memory cards): > 20.000
CD-loader (for CDDA, CD-R, CD-RW): No

Playback formats: MP2, MP3, WMA, FLAC, M4A/ AAC, WAV
Display options (may depend on media file): ID3V2 (title, artist, album), folder, file, playing time

Folder & file browsing: Yes

iPod, iPhone control (only iAP2, Lightning/USB-C): Yes (via USB front and rear)

Shuffle folder/ media: Yes/ Yes
Repeat Title/ Folder/ All: Yes/ Yes/ Yes
Forward/rewind with sound: Yes
Introscan: Yes (adjustable time)



BLUETOOTH
(Availability/ support of functions depend on the phone/ app used!)

Phone Calls: Yes
Internal microphone: Yes
Connectivity ext. microphone: Yes
Answer/ reject call: Yes/ Yes
Access phonebook: Yes (max. 1000 numbers)

Audio streaming: Yes
Forward/rewind: Yes
Introscan: Yes (adjustable time)
Display options: Title, Artist, Album, Playtime

Access to Voice Assistant(like Siri, Google, Alexa): Yes

Cell phone navigation audio mix: No

Auto wake-up on call: Yes (when radio off + ignition on), deactivatable

Fast pairing without PIN: Yes
Automatic reconnection: Yes, last 5 devices

Bluetooth version: 5.0 LE
Number of paired devices: max. last 5
No. of devices connected at the same time: Max. 1
Supported profiles: A2DP, AVRCP, HFP, SPP
Audio Codecs: AAC, SBC



SOUND

Equalizer (number of bands/ design/ setable q-factor): Yes (3/ semi-parametric/ yes)
Bass/ trebleadjustment: Yes/ yes (+/-7 steps)
Source-specific bass/ treble adjustment: Yes
Balance/ fader: Yes/ yes (+/-7 steps)
HPF/ LPF: No
Loudness: Yes
Sound presets: Rock, Pop, Classical

Speaker Outputs (Channels): 4
Preamp Outputs (Channels, Voltage): 4 (RCA, < 2V)
Sub-Out: 2 (RCA, < 2V, gain/ frequency variable)
Max. Power: 4x 50 watts
Sine power at 14.4 V: 4x 24 watts (according to DIN 45324)



GENERAL

Display: LCD, negative, anti-reflective, wideangle, alphanumeric + symbols
Scrolling: Yes (one time /repetitive/never)

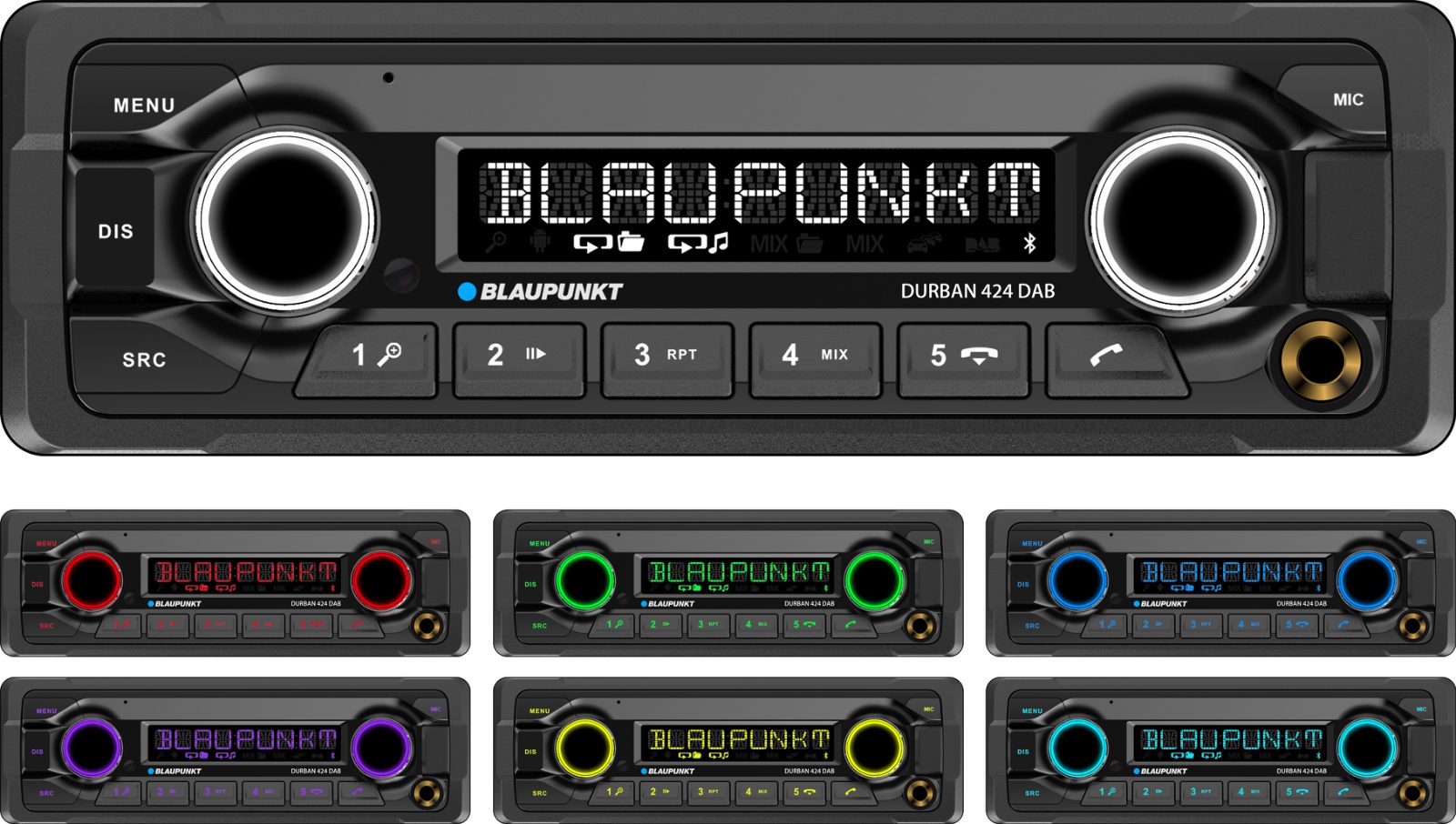

Illumination colour of display: Multicolour, 7 colours (white, green, yellow, red, violet, blue, skyblue)
Illumination colour of keys: Same as display
Day/Night mode: Yes (manual/ via dimmer connection)
Night design when switched off (vehicle light on): Yes (on knob red illumination)
Brightness: Multi-level, variable (16 steps)
Time display: Yes
HMI languages: English, German
Hour timer (automatic switch-off when ACC off): Yes, deactivatable
Low standby current: Yes (< 3,5 mA )

Antenna inputs: FM DIN/ ISO (with adaptor), DAB SMB (DAB with 12 V phantom power)
Mute input/ Telephone mute: Yes (GND active)
Ext. handsfree microphone connector: Yes
Remote control: Yes (IR sensor for card remote control, compatible with old RC-10)
Steering wheel remote control (SWC): Yes (analog, programmable, pre-programmed)

Variable scan time: Yes (4, 8, 12, 16, 60s)
Confirmation beep: Yes (can be deactivated)
Control panel type: Fixed panel
Colourpanel/ decor ring: Black/ Black

Software Update: via USB
Permanent Memory: Yes (Settings & Presets)
Demo Mode: Yes
Weight: approx. 0.6 kg
Dimensions non-CD/ CD model: 50 x 178 x 76 mm (H x W x D, only housing w/o front), 58 x 187 x 17 mm (H x W x D, front with trim ring, incl. buttons

Operation voltage: 24 Volt (28.8 Volt)
Power consumption: < 10 A in Operation, ACC off after 10 seconds< 3.5 mA

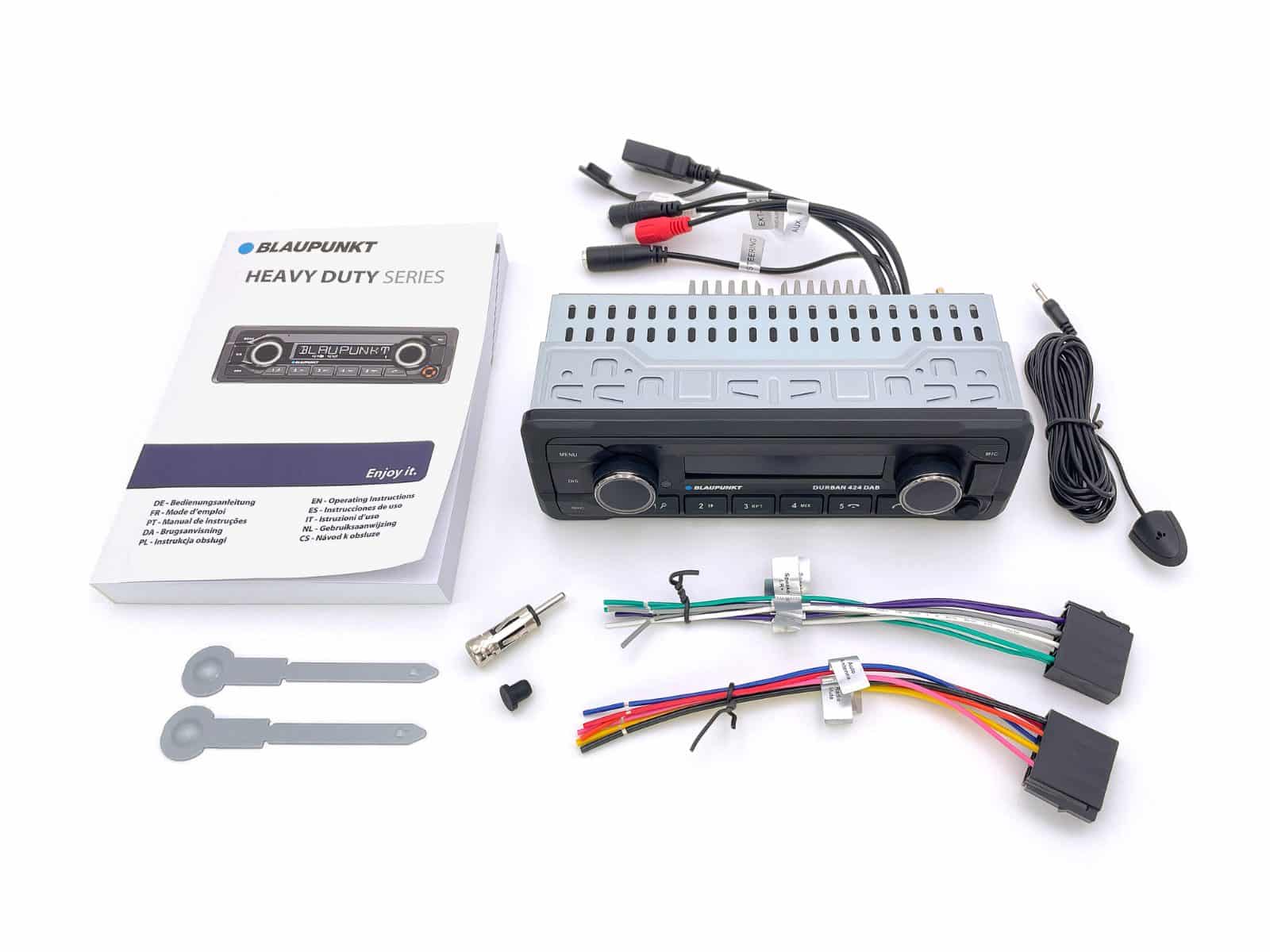

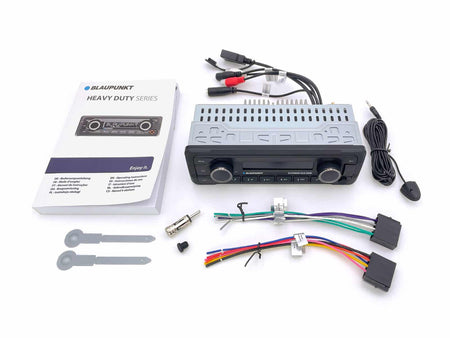

SCOPE OF DELIVERY

User manual (languages): Yes (DE, EN, FR, ES, PT, IT, DA, NL, PL, CS)
External BT microphone: Yes (5 104 020 001 001)
Unlocking tool: Yes
Connectors (ISO A, B): Yes
Antenna adaptor (DIN/ ISO): Yes
