Audison Prima APF-1D Mono Amplifier 1000W
Need Help?

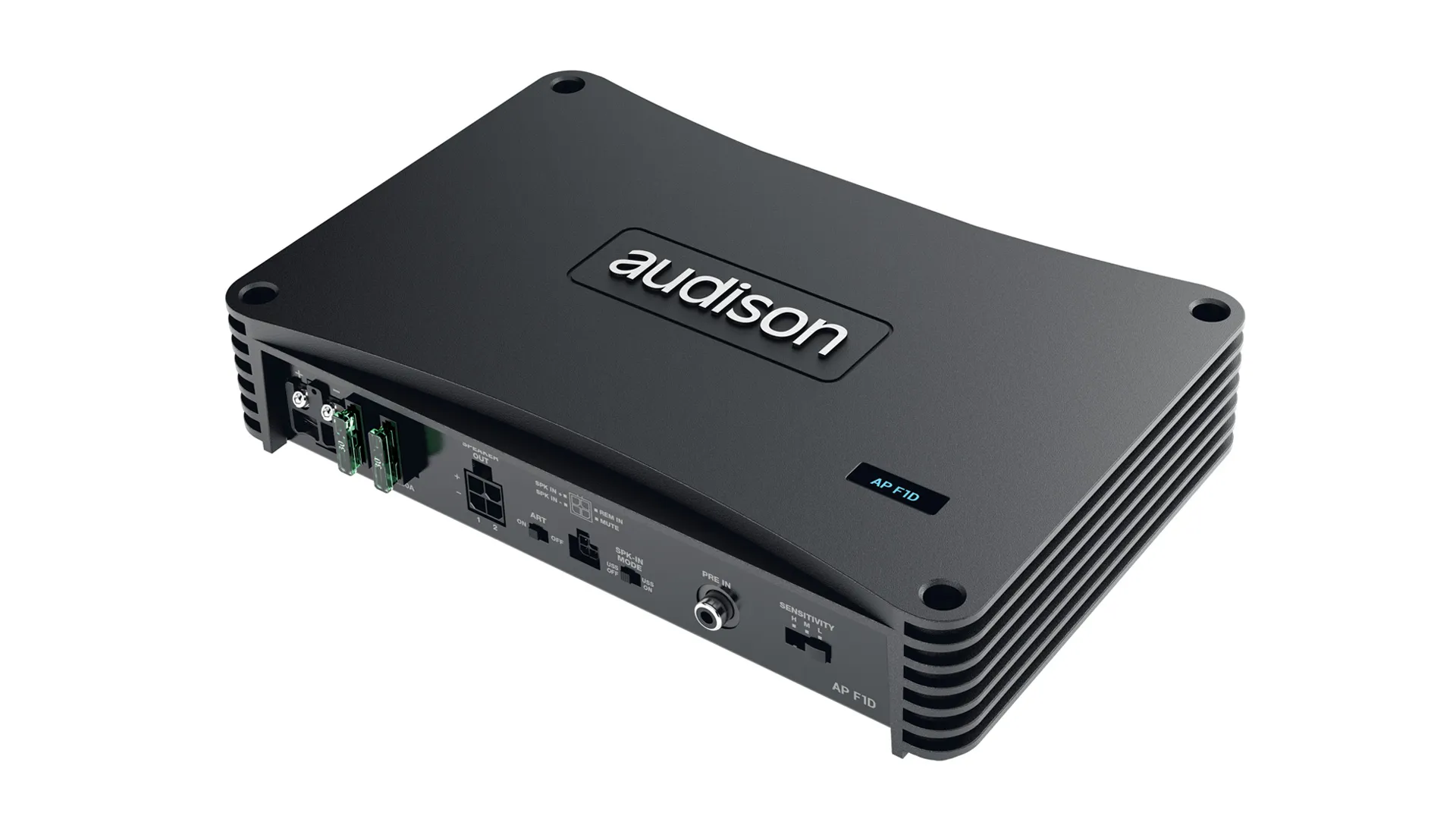

AP F1D Amplifier | 1000 W | 1 x 1000 W @ 1 ohm | D-class
The AP F1D amplifier was designed to drive the most demanding subwoofer and is the ideal extension of the AP F8.9 bit. At 1 ohms it is stable and can supply up to 1000 W of power with extremely compact dimension.
- Channels -1 D-Class
- Hi Level Input Yes
- Low Level Input Yes
- Digital Input No
- Power supply voltage / fuse 11 ÷ 15 VDC / 2 x 30A
- Operating power supply voltage 6.5 ÷ 17 VDC
- Idling current 1.3 A
- Idling current when off 0.05 mA
- Consumption @ 14.4 VDC, 2Ω, Max Musical Power 50 A
- Remote IN 6.5 ÷ 15 VDC (1 mA)
- ART - Automatic Remote Turn on/off from OUTPUT BTL speakers (Selectable) 2 ÷ 7 VDC
AMPLIFIER STAGE
- Distortion - THD @ 100 Hz, 4Ω, 70% Rated Power 0.1%
- Bandwidth A (-3 dB, 2 VRMS, 4 Ω): 10 Hz ÷ 500 Hz
- S/N ratio A (A weighted @ 1 V): 110 dBA
- Damping factor A (100 Hz, 4Ω, 2 VRMS): 140
- Input sensitivity Pre-In Selectable: 0.6 - 2.0 - 6.0 VRMS
- Input sensitivity Speaker-In Selectable: 2.0 - 6.5 - 20 VRMS
- Total Power RMS 1000 W
- Minimum load impedance 1Ω
- Output Power (RMS) @14.4 VDC, 1% THD 1Ch @ 4Ω 500 W x 1
- 1Ch @ 2Ω 800 W x 1
- 1Ch @ 1Ω 1000 W x 1
- Adjustable Crossover No
CEA SPECIFICATIONS
- Output power @ 4Ω, 1% THD+N, 14.4 V 500 W
- SN ratio (ref. 1W output) 81,5 dB

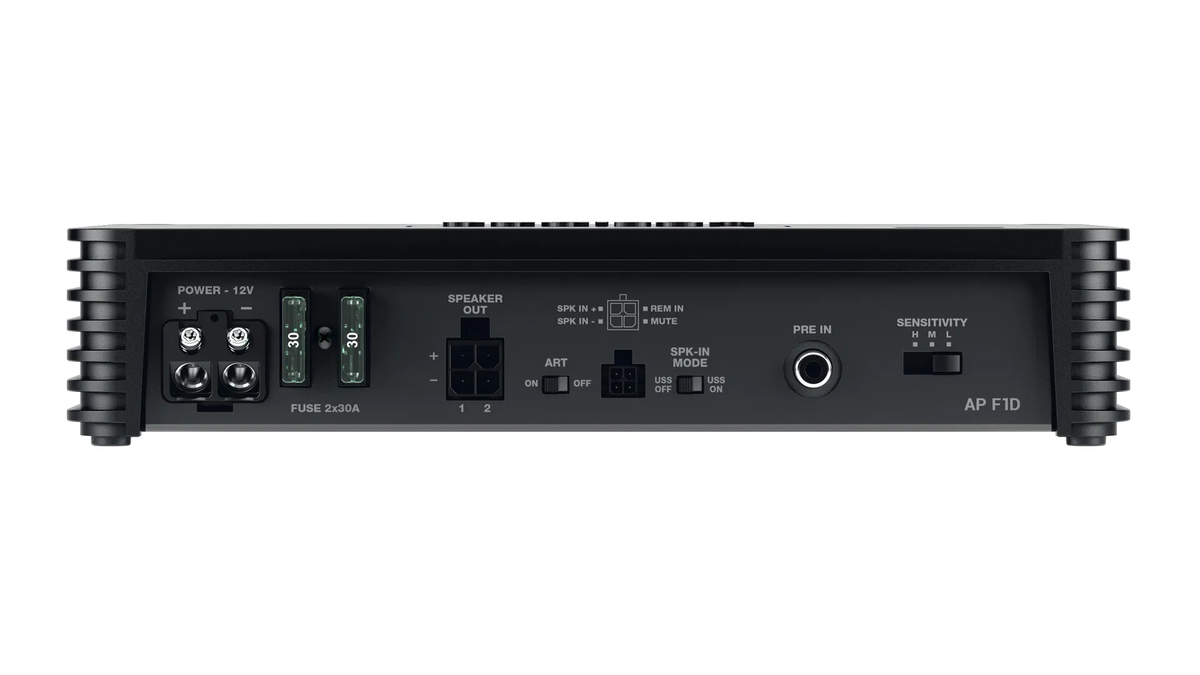

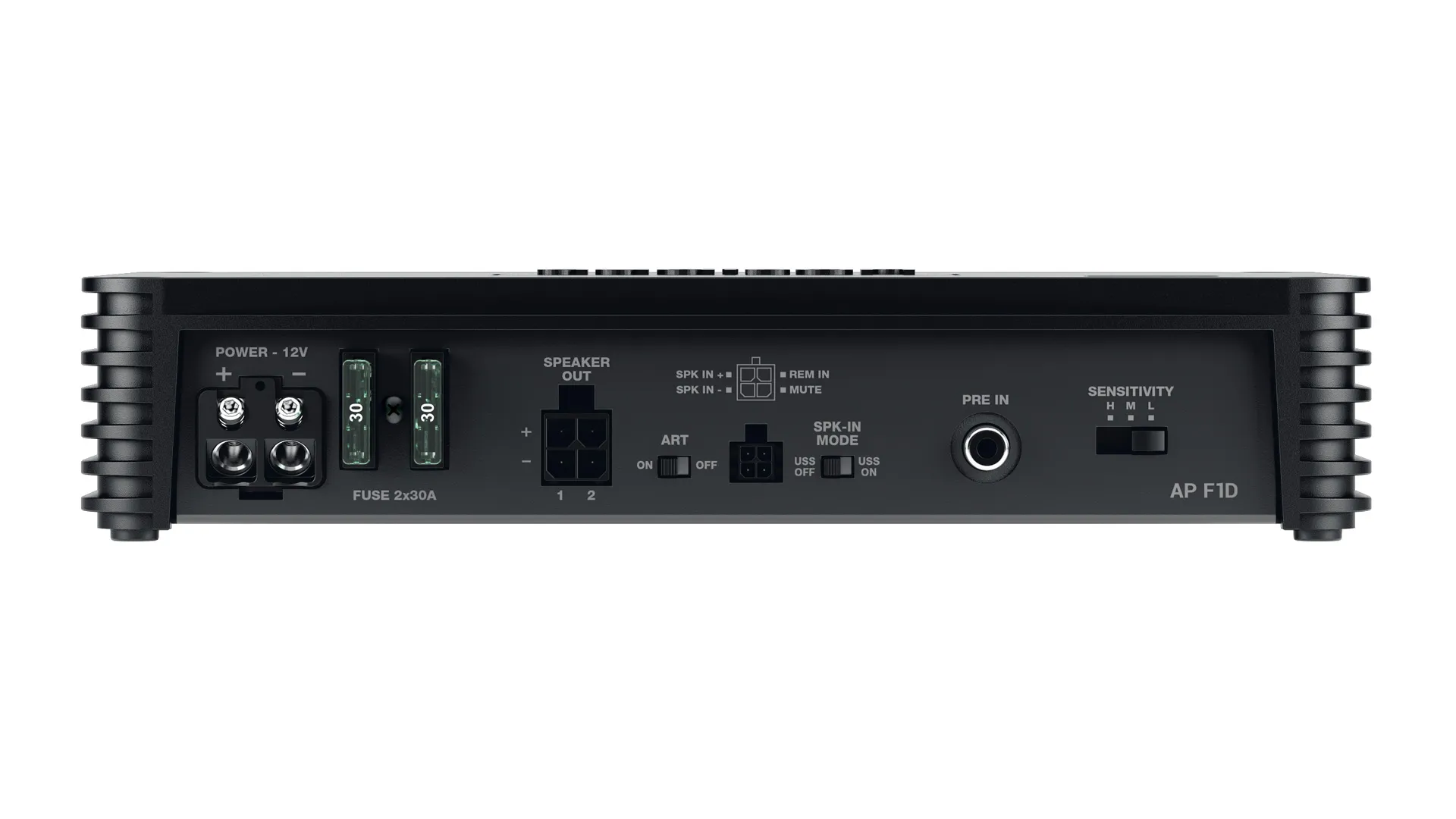

INPUTS
- Input Type Pre-In Inputs RCA
- Filters Outputs Speaker-In Inputs wired
- Filter Pass A Mute (Energy Saving control) wired (active to groung)
OTHER
- Other Fucntions Ambient operating temperature range 0 °C to 55 °C (32 °F to 131 °F)
- Weight 1.92 kg
