ACV 621320-41-2 VW Polo MK5 Facelift 2014-2017 Full Stereo Fitting Kit

Facia plate 2-DIN and HU connector kit i-dapter VW

Many car manufacturers install car specific head units to fit the optical
picture of the dashboard.

Installation kits include all components for replacing an OEM HU.

Depending on the vehicle's equipment all adapters and interfaces required to operate the retrofit device and restore vehicle functions are included in the scope of delivery.

Depending on the range of functions and software of the retrofit HU, individual operating functions may be omitted or replaced by other functions.

Please check the installation recommendations for the individual components.

SWC buttons are essential to get access to the Infodapter configuration menu.

Also check our listed OEM head units and compare the pictured harness connectors with the connectors in your car and make sure that they fit optically and technically.

Note that in some cases not all functions are supported.
For example Trailer Assist, E Call or other driver assistance and comfort systems.

Check the vehicle menu for various settings before installation.

Also check the function of the settings and the vehicle system before final installation.

Please contact our support team for help.
02431-9645-96
support@acvgmbh.de

Note:

Can Bus

connector: 52 Pin Quadlock VAG
connector: OEM SWC > 3,5mm Jack / loose wire
connector OEM antenna Fakra(f) > DIN(m)
connector: OEM rear view camera > RCA(f) ochre
connector: OEM USB > USB-A

blue: +12V antenna remote

before installation check antenna phantom supply voltage by measuring with OEM device :
vehicles with 8.5V antenna system > item: 1524-29-1-0
vehicles with +12V antenna system > item: 1524-70-1-0

vehicles with MIB-II systems

activate and configure the rear view camera input in the retrofit HU

connection i-dapter:
purple/white: +12V reverse gear signal
RCA(m) ochre: rear view camera input retrofit HU

visualisation i-adapter settings > retrofit HU rear view camera input
visualisation OPS > retrofit HU rear view camera input
visualisation Klinatronik > retrofit HU rear view camera input

vehicles with SWC i-dapter settings:
press and hold track up SWC buttom
alternatively with item: 43x-remote

vehicles without SWC i-dapter settings required accessories:
i-dapter accessories remote control >  interface settings: item: 43x-remote

camera image or i-dapter settings and visualisation not available:
connect additional GND signal to the RCA outer conductor of the camera and HU connection

vehicles with parking assistance front PDC > front PDC is shown after ignition in display
exit the display > via vehicle PDC switch

+12V reverse gear signal is switched off from 3 km/h

camera image or i-dapter settings and visualisation not available:
connect additional GND signal to the RCA outer conductor of the camera and HU connection

vehicles without amplified system

Not for vehicles:
with OEM amplified system
with open dash
without any OEM preparation > SWC / speakers / HU

dip switch settings for the retrofit device manufacturer (look into the manual)

Vehicle application:

VW Polo V (6R) 04/2014 - 07/2017

Colour: piano black

Mounting cutout 7" HU display: 178mm/173mm x 102mm/98mm

Following signals are provided:

Reimported vehicles or vehicles with different software may be incompatible in functions.

red: +12V ignition clamp 15
orange: +12V illumination clamp 58
purple/white: +12V reverse gear signal
pink: speed pulse signal
green: GND park brake signal

load capacity outputs: 250 mA max.

current requirement more than 250 mA:
1 relay coil resistance 75 Ohm min.
2 relays coil resistance 150 Ohm min.

SWC

visualisation climate control
visualisation OPS
CAR vehicle settings supported

*adapt fascia plate with workshop tools

Scope of delivery:

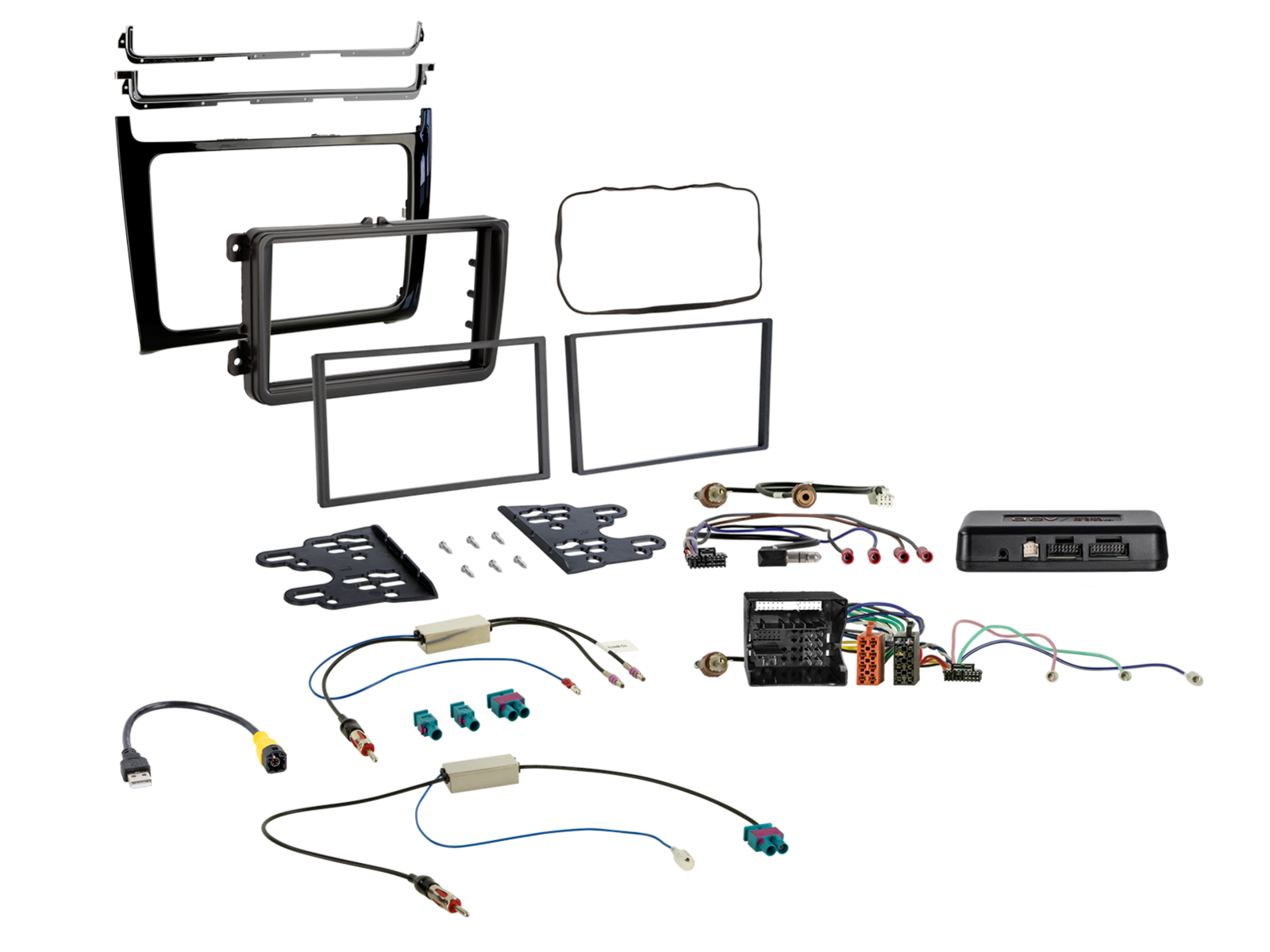

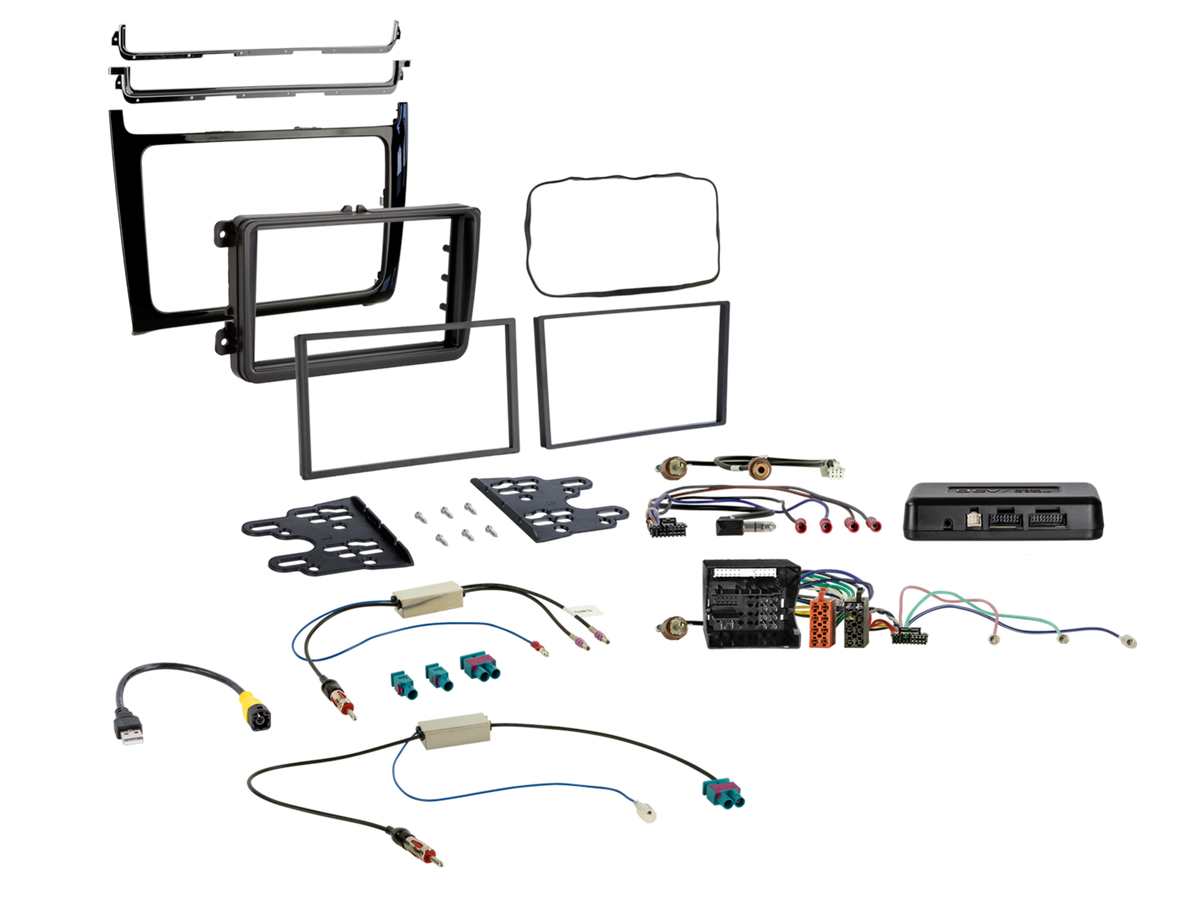

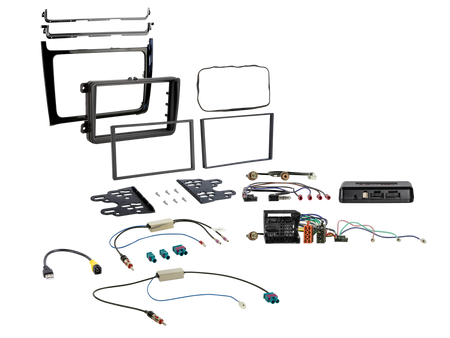

2-DIN facia plate VW Polo 04/2014-07/2017 piano black > item: 381320-41-2
i-dapter MAN TGE/Seat/Skoda/VW 52Pin Quadlock Multilead > item: 43xvw04
Antenna adapter Fakra(m)(set)>DIN(m) 12V phantom LEONI bulk > item: 1524-70-1-0
Antenna adapter Fakra(m)(double)>DIN(m) 8.5V LEONI bulk > item: 1524-29-1-0
USB Adapter VW different vehicles LVDS yellow>USB-A > item: 44-1324-006

General installation instructions:

Verification:
1: Check all operating functions and vehicle setting functions of the OEM HU.
2: Disconnect the OEM HU voltage-free.
3: Check all interface connections for correctness in a voltage-free.

Connection and connection sequence:
1: Check settings and hardware configuration of the interface voltage-free.
2: Check configuration of the radio connection cable voltage-free.
3: Connect the radio connection cable according to the operating instructions of the retrofit HU.
4: Connect all other connections according to the operating instructions of the retrofit HU.
5: Connect the entire installation to the vehicle with the main connection last.
6: Software configuration of the interface according to the instructions in the item text and in the manual.
7: Configure the retrofit device according to the operating instructions of the retrofit device steering wheel remote control/camera/handsfree kit/antenna phantom powering and others.
8: Function test of steering wheel remote control and vehicle

Changes to the configuration of the interface and the radio connection cable:
1: Change configuration voltage-free
2: Reconnection see above 5 to 8

In case of malfunction of the interface or the vehicle:
1: Reinstall the OEM HU
2: Operate the OEM HU
3: Establish CAN bus shut down
4: Check the hardware configuration of the interface
5: Reconnection after CAN Bus shut down see above 5 and 6

More connections, connection changes, alternative connections, connections of loose cables or connection extensions of loose cables specified in the information text, or the manual are for orientation purposes only and for the information of trained specialist installer.

More connections, changes to the cable configuration of the wiring harness or use of alternative connections or connection extensions:
1: Connections and changes are to be carried out exclusively by trained specialist installer.
2: Connections and modifications must be checked before connection for any manufacturer approvals or manufacturer warranty conditions that may be affected by the modifications.
3: Connections and modifications must be checked for function and correctness by measuring and comparing them with the vehicle's cable assignment diagram before connection.
4: Connections and modifications are made on the user's own responsibility without guarantee of function.
5: Connections and modifications are made on the user's own responsibility without any guarantee of damage to the vehicle, the retrofit device, or the interface.
6: Modifications to the pre-assembled wiring harness may invalidate the product's warranty.
