ACV 621320-39-1 VW Golf MK7 MK7.5 2013-2020 Full Stereo Fitting Kit
Need Help?
Facia plate 10" / 9" / 7" and HU connector kit i-dapter VW
ACV premium quality
Many car manufacturers install car specific head units to fit the optical picture of the dashboard.
Installation kits include all components for replacing an OEM HU.
Depending on the vehicle's equipment, all adapters and interfaces required to operate the retrofit device and restore vehicle functions are included in the scope of delivery.
Check the installation recommendations for the individual components.
Please check the OEM HU and vehicle settings for available settings bevore installation.
Note that in some cases not all functions are supported.
For example Trailer Assist, E Call or other driver assistance and comfort systems.
Also check our listed OEM head units and compare the pictured harness connectors with the connectors in your car and make sure that they fit optically and technically.
Finaly check all functions bevor final installation.
Please contact our support team for help.
02431-9645-96
support@acvgmbh.de
Note:
Can Bus
connector: 52 Pin Quadlock VAG
connector: OEM SWC > 3,5mm Jack / loose wire
connector OEM antenna Fakra(f) > DIN(m)
connector: OEM rear view camera > RCA(f) ochre
connector: OEM USB > USB-A
blue: +12V antenna remote
before installation check antenna phantom supply voltage by measuring with OEM device :
vehicles with 8.5V antenna system > item: 1524-29-1-0
vehicles with +12V antenna system > item: 1524-70-1-0
vehicles with MIB-II systems
vehicles right-hand drive
10" modular HU with display and silverbox
10" HU with L-body at the bottom
9" modular HU with display and silverbox
9" HU with L-body at the bottom
9" HU with short body
7" modular HU with display and silverbox
7" HU with L-body at the bottom
7" HU with short body
7" HU assembly without sheet metal basket without HU trim frame
HU assembly with customised accessories
Display assembly with customised accessories
vehicles with MIB II systems and composition media 8" touch screens
activate and configure the rear view camera input in the retrofit HU
connection i-dapter:
purple/white: +12V reverse gear signal
RCA(m) ochre: rear view camera input retrofit HU
visualisation i-adapter settings > retrofit HU rear view camera input
visualisation OPS > retrofit HU rear view camera input
visualisation Klinatronik > retrofit HU rear view camera input
vehicles with SWC i-dapter settings:
press and hold track up SWC buttom
alternatively with item: 43x-remote
vehicles without SWC i-dapter settings required accessories:
i-dapter accessories remote control > interface settings: item: 43x-remote
camera image or i-dapter settings and visualisation not available:
connect additional GND signal to the RCA outer conductor of the camera and HU connection
vehicles with parking assistance front PDC > front PDC is shown after ignition in display
exit the display > via vehicle PDC switch
+12V reverse gear signal is switched off from 3 km/h
camera image or i-dapter settings and visualisation not available:
connect additional GND signal to the RCA outer conductor of the camera and HU connection
vehicles with E-Call:
E-Call function retention MAN/Seat/Skoda/VW 52 Pin Quadlock > item: 1424-02
vehicles without amplified system
Not for vehicles:
with OEM amplified system
with open dash
without any OEM preparation > SWC / speakers / HU
dip switch settings for the retrofit device manufacturer (look into the manual)
Vehicle application:
VW Golf VII (AU) 11/2012 - 12/2016
VW Golf VII (AU) 03/2017 - 05/2020
Colour: piano black
Mounting cutout 10" HU display: 250mm/241mm x 146mm
Mounting cutout 9" HU display: 230mm/220mm x 130mm
Mounting cutout 7" HU display: 178mm/173mm x 102mm/98mm
The following signals are provided:
Reimported vehicles or vehicles with different software may be incompatible in functions.
red: +12V ignition clamp 15
orange: +12V illumination clamp 58
purple/white: +12V reverse gear signal
pink: speed pulse signal
green: GND park brake signal
load capacity outputs: 250 mA max.
current requirement more than 250 mA:
1 relay coil resistance 75 Ohm min.
2 relays coil resistance 150 Ohm min.
SWC
visualisation climate control
visualisation OPS
CAR vehicle settings supported
Optional:
E-Call function retention MAN/Seat/Skoda/VW 52Pin Quadlock > item: 1424-28
Scope of delivery:

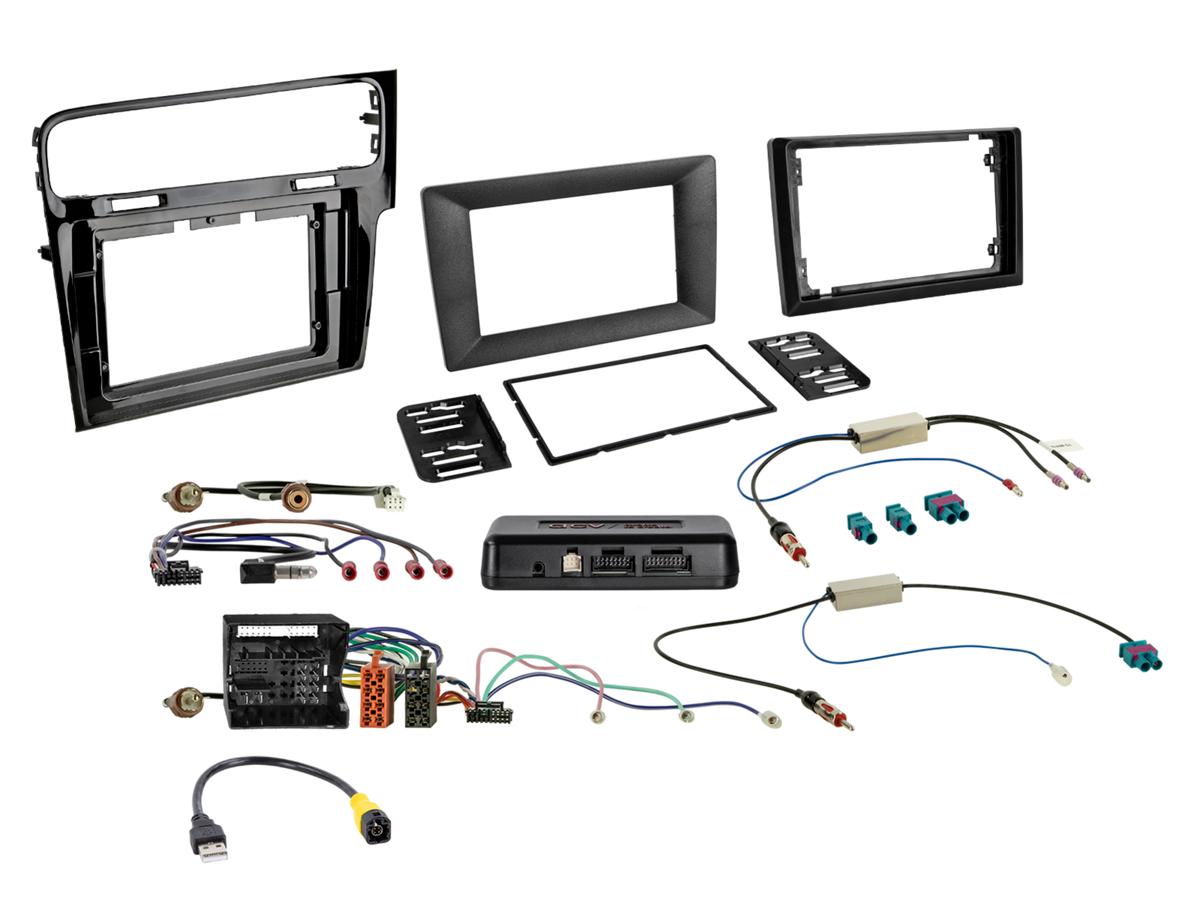

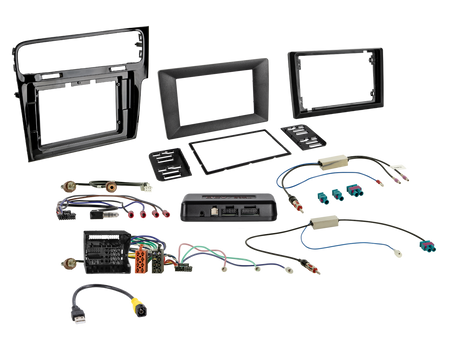

10" facia plate VW Golf VII 2012-2020 piano black RHD > item: 381320-139-1
10"facia plate accessory 10">9" display reduction > item: 271000-40
10"facia plate accessory 10">7" display reduction > item: 271000-41
i-dapter MAN TGE/Seat/Skoda/VW 52Pin Quadlock Multilead > item: 43xvw04
Antenna adapter Fakra(m)(set)>DIN(m) 12V phantom LEONI bulk > item: 1524-70-1-0
Antenna adapter Fakra(m)(double)>DIN(m) 8.5V LEONI bulk > item: 1524-29-1-0
USB Adapter VW different vehicles LVDS yellow>USB-A > item: 44-1324-006
General installation instructions:
Verification:
1: Check all operating functions and vehicle setting functions of the OEM HU.
2: Disconnect the OEM HU voltage-free.
3: Check all interface connections for correctness voltage-free.
Connection and connection sequence:
1: Connect all other connections according to the operating instructions of the retrofit HU.
2: Connect the entire installation to the vehicle with the main connection last.
3: Configure the retrofit HU according to the operating instructions of the retrofit device steering wheel remote control/camera/handsfree kit/antenna phantom powering and others.
4: Function test retrofit HU and vehicle
In case of malfunction of the interface or the vehicle:
1: Reinstall the OEM HU
2: Operate the OEM HU
3: Establish CAN bus shut down
4: Check the hardware configuration of the interface
5: Reconnection after CAN Bus shut down see connection and connection sequence
More connections, connection changes, alternative connections, connections of loose cables or connection extensions of loose cables specified in the information text or the manual are for orientation purposes only and for the information of trained specialist installer.
More connections, changes to the cable configuration of the wiring harness or use of alternative connections or connection extensions:
1: Connections and changes are to be carried out exclusively by trained specialist installer.
2: Connections and modifications must be checked before connection for any manufacturer approvals or manufacturer warranty conditions that may be affected by the modifications.
3: Connections and modifications must be checked for function and correctness by measuring and comparing them with the vehicle's cable assignment diagram before connection.
4: Connections and modifications are made on the user's own responsibility without guarantee of function.
5: Connections and modifications are made on the user's own responsibility without any guarantee of damage to the vehicle, the retrofit device or the interface.
6: Modifications to the pre-assembled wiring harness may invalidate the product's warranty.
