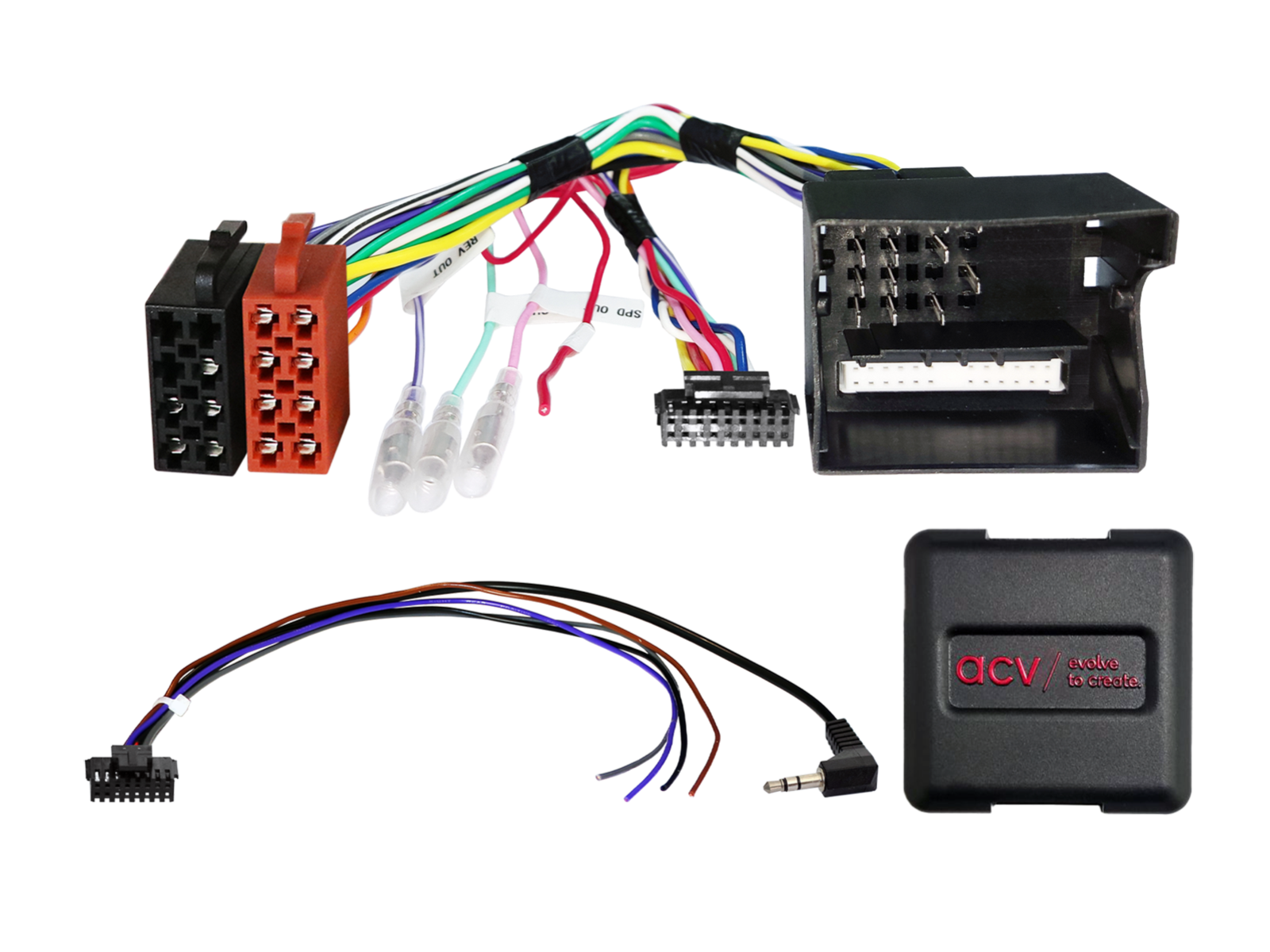

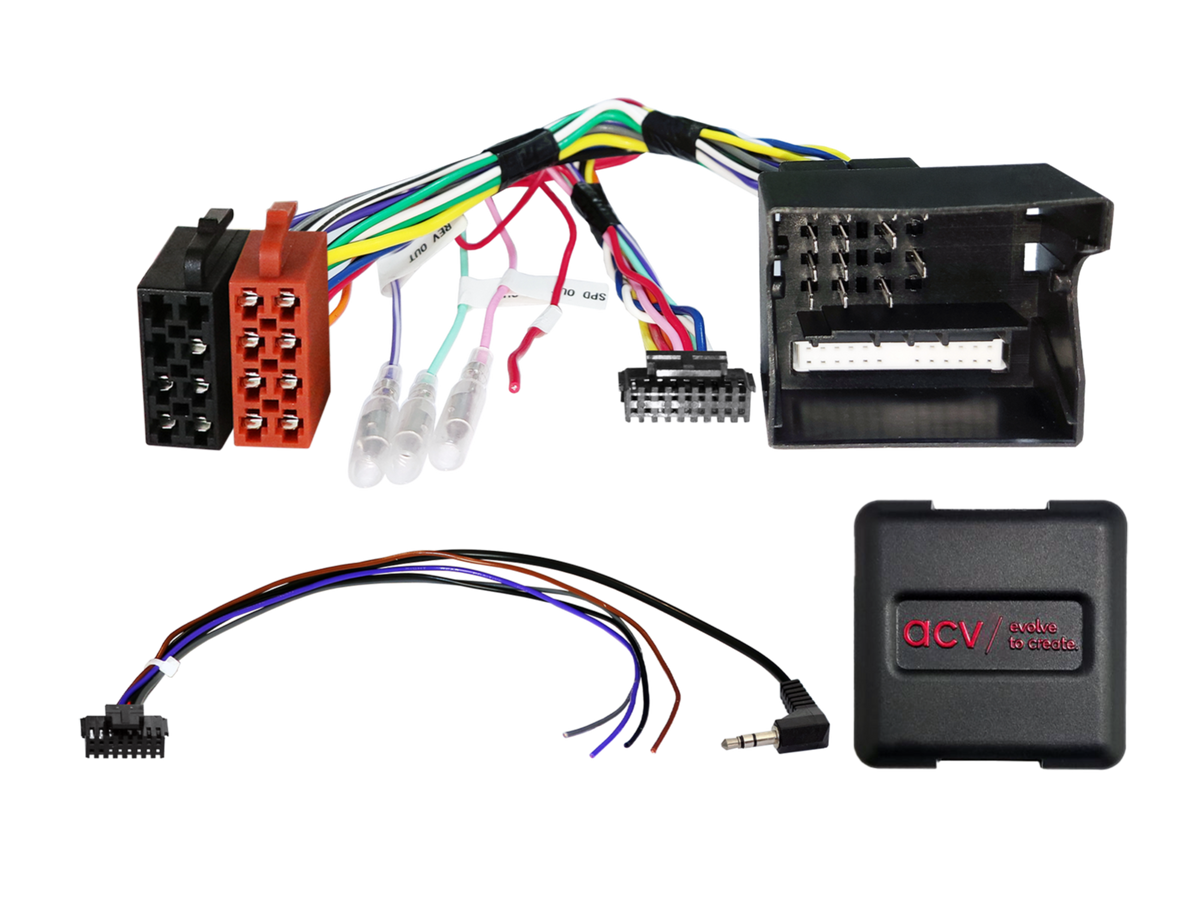

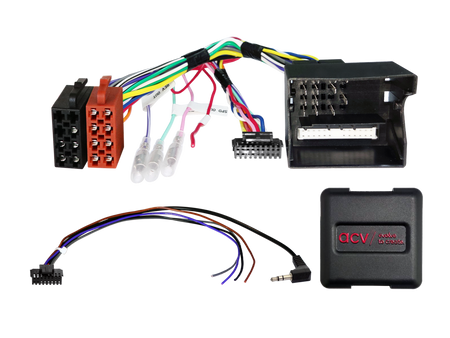

ACV 42XVX003 Vauxhall Corsa D 2008-2014 40Pin Quadlock Multilead Steering Control Adapter

Keep the original steering wheel remote control functions when replacing the factory radio with a retrofit HU.

Depending on the vehicle equipment as well as the range of functions and software of the retrofit HU, individual operating functions may be omitted or replaced by other functions.

Compare the pictured harness connectors with the connectors in your car and make sure that they fit optically and technically.

Check if one of the listed OEM head units were installed originally.

Also check vehicle functionality, vehicle settings and SWC functionality before final assembly.

Note:

CAN Bus

connector: 40 Pin Quadlock Opel
connector: OEM SWC > 3,5mm Jack / loose wire
conector: back up power > loose wire

Vauxhall Corsa D 2008-2014 40Pin Quadlock

vehicles with CD30 / CD 30 MP3 / CDC40 / CD50 / CD70 / DVD90 OEM HU

connection loose wire:
red: +12V ignition clamp 15 fusebox fused

vehicles with interface failure after longer period of operation:

1: OEM HU must be reconnect
2: CAN Bus must shut down
3: CAN Bus alternative tap: 32 pin OEM display connector Can High / Can Low > Pin 20 / Pin 23
4: CAN Bus alternative tap: Comfort CAN at climate control system

vehicle settings supported (look into the manual)

dip switch settings for the retrofit device manufacturer (look into the manual)

Vehicle application:

Opel Corsa D (S07) 12/2008 - 11/2010
Opel Corsa D (S07) 01/2011 - 08/2014

The following signals are provided:

Reimported vehicles or vehicles with different software may be incompatible in functions.

red: +12V ignition clamp 15
orange: +12V illumination clamp 58
purple/white: +12V reverse gear signal
pink: speed pulse signal
green: GND park brake signal

load capacity outputs: 250 mA max.

current requirement more than 250 mA:
1 relay coil resistance 75 Ohm min.
2 relays coil resistance 150 Ohm min.

SWC

vehicle settings supported
