ACV 42XPO005 Porsche 911 / Boxster / Cayman (05-09) Steering Wheel Stalk Control / Fibre Optic Amplifer Retention

Stalk Adapter & Fibre Optic Amp Retention Porsche 911 / Boxster / Cayman (04-09)

Keep the original steering wheel remote control functions when replacing the factory radio with a retrofit HU.

Depending on the vehicle equipment as well as the range of functions and software of the retrofit HU, individual operating functions may be omitted or replaced by other functions.

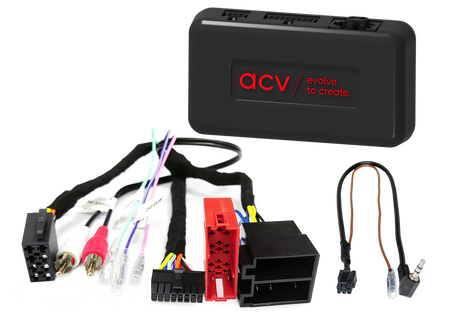

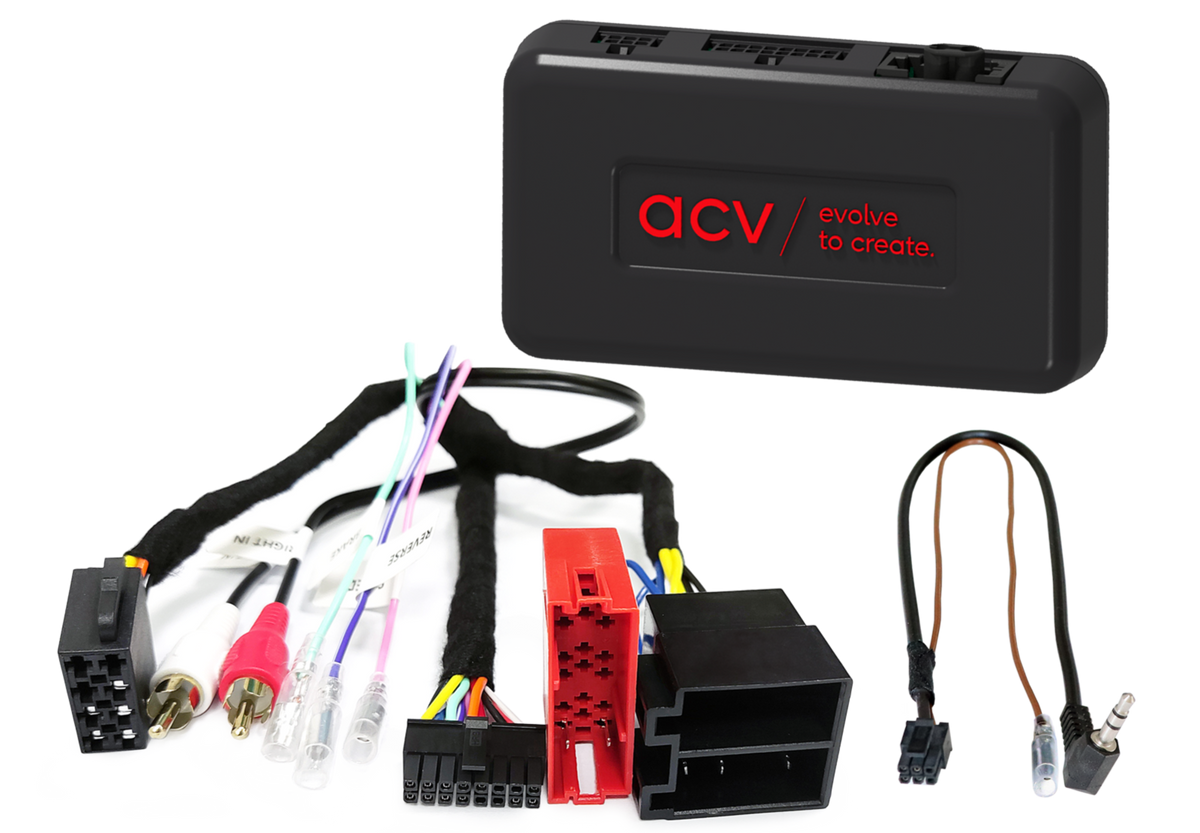

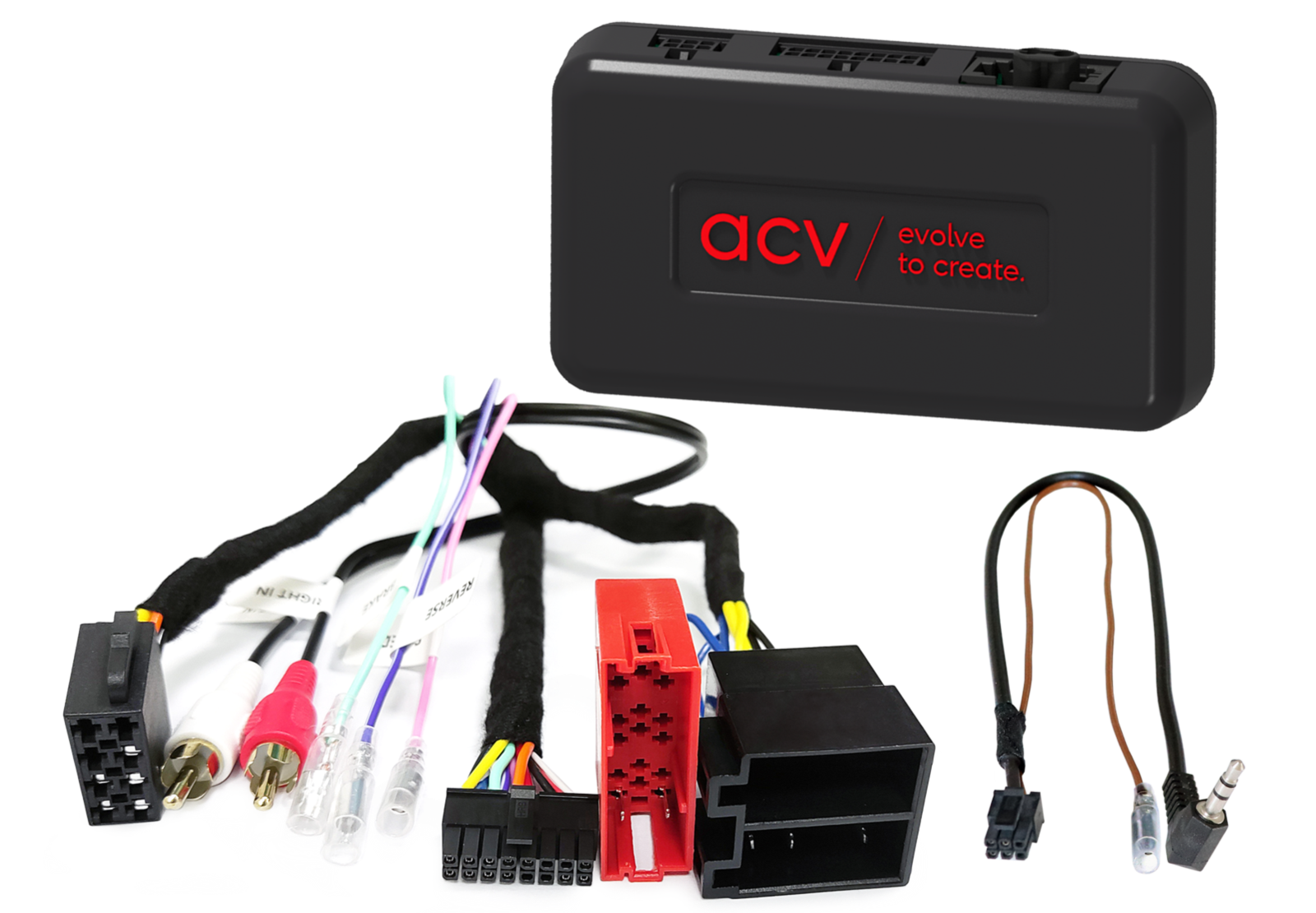

Compare the pictured harness connectors with the connectors in your car and make sure that they fit optically and technically.

Check if one of the listed OEM head units were installed originally.

CAN Bus

connector: ISO / Mini ISO Porsche
connector: OEM SWC > 3,5mm Jack / loose wire
connector: OEM MOST amplified system > RCA(m) red/white

vehicles witn CDR24 OEM HU
vehicles with PCM2.1 OEM Sat Nav

dip switch settings for the retrofit device manufacturer (look into the manual)

RCA(m) > front preamp output retrofit HU
fader function not supported

Vehicle application:

Porsche Boxster (987) 10/2004 - 01/2009
Porsche Cayman (987C) 11/2005- 01/2009
Porsche 911 (997) 07/2004 - 08/2009

Following signals are provided:

Reimported vehicles or vehicles with different software may be incompatible in functions.

red: +12V ignition clamp 15
orange: +12V illumination clamp 58
purple/white: +12V reverse signal
pink: speed pulse signal
green: GND park brake signal

load capacity outputs: 250 mA max.

current requirement more than 250 mA:
1 relay coil resistance 75 Ohm min.
2 relays coil resistance 150 Ohm min.

SWC

OEM amplified system MOST > fader function not supported
